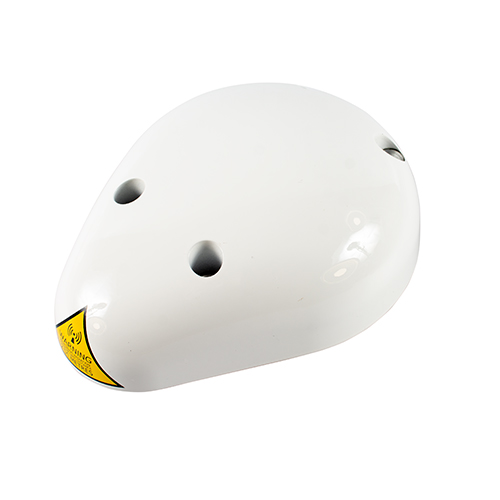

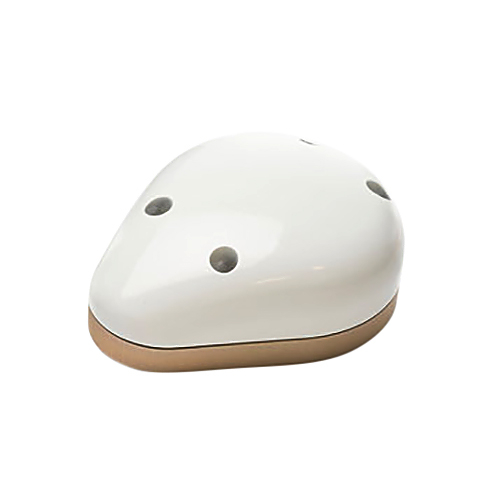

AeroWave Active LGA Antenna

Product Description

The AeroWave X Active LGA Antenna provides the next generation of high-speed, in-flight internet solution in general aviation aircraft – including twin-engines, turbo props, and light jets. This LGA antenna has an extremely small foot print which enables a discreet installation even on small airframes. The integrated GPS simplifies installation by eliminated the need for integration with an onboard position source. Its lightweight allows more flexibility on AeroWave's location in the aircraft. Compatible with AeroWave X SATCOM system.

The complete AeroWave X SATCOM system consists of the following components (sold separately):

• AeroWave X GoDirect Router
• AeroWave X Small SATCOM Data Unit
• AeroWave X Active LGA Antenna
• AeroWave X Installation Kit

Specifications

• Weight:
  1.5 lb
• Dimensions:
  5.6 x 4.4 x 1.9 in
• Power Dissipation:
  40 watt, maximum
• Cooling:
  no forced-air required

Product Codes

• Mfr Part No
  89000015-009
• ECCN
  7A994
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C132
