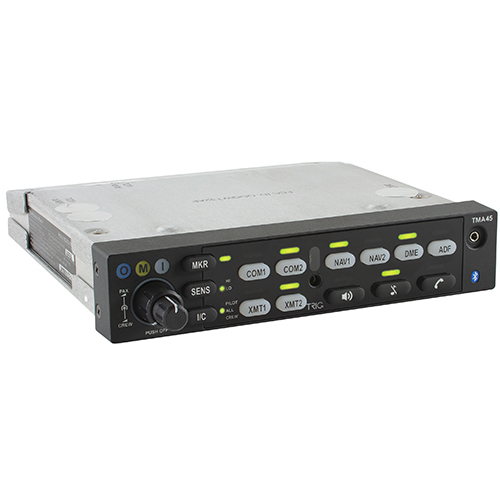

TMA45 Superior Audio Panel

Product Description

Hosting 2-6 seats the TMA45 has industry leading Trig Digital Noise Reduction (TDNR). By automatically selecting the optimum level of squelch and mic threshold TDNR reduces cockpit noise. This improves an audio environment; it aids pilot concentration and combats fatigue. The TMA45 superior panel also features ’smooth fade’ and Trig Active Mute (TAM) this further removes unwanted background noise from radio static, producing class leading audio quality.

The TMA45’s stereo music entertainment and mobile phone connectivity are best placed to enjoy by creating a more comfortable audio environment. Integrated Bluetooth allows two portable electronic devices to be connected providing stereo music and communication options – it’s the preferred solution for discerning pilots who want to stay connected.

Specifications

• Weight:
  1.3 lb
• Dimensions:
  6.2 x 1.3 x 7.7 in
• Audio Panel (Stereo):
  2 to 6 seats
• Switched inputs:
  Nav 1, Nav 2, ADF, DME and TEL
• Unswitched inputs (audio warnings):
  4
• Adjustable Illumination:
  photocell and/or via lighting bus
• Mic frequency response (3 dB):
  300 Hz to 6 kHz
• Music frequency response (3 dB):
  20 Hz to 20 kHz
• Headphone impedance:
  150Ω to 1,000Ω
• Headphone output (each headset):
  38 mW
• Speaker output:
  3 watts @ 14 VDC, 10 watts @ 28 VDC
• Supply voltage:
  11 to 33 VDC
• Operating Temperature:
  -20°C to 55°C
• Storage Temperature:
  -40°C to 85°C
• TSO Compliance:
  TSO-C50c, TSO-C35d

Product Codes

• Mfr Part No
  TMA45
• ETSO
  C50c, 2C35d
• PROAPP
  PT1336 CE-D
• TSO
  C50c, C35d
