123-03004A3N Square and Rectangular Clamp | 3in ATI, 4in depth

Product Description

MSP avionics clamps eliminate the need for panel removal when repairing or replacing an instrument such as an altimeter or artificial horizon. These patented chem film and anodized finished clamps are rust proof for up to 25 years; made from lightweight, non-conductive aluminum, they make retrofits simpler and faster as well as making the instrument more secure in the panel.

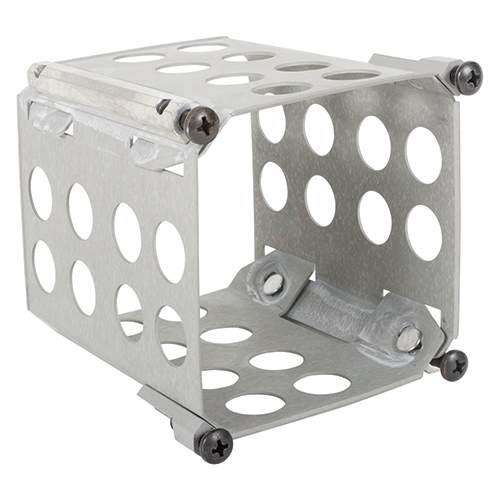

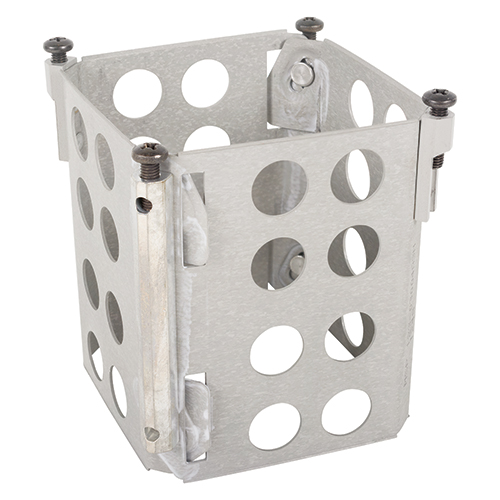

This avionics clamp (EDMO# 03004A3N) is a square, 3-inch ATI clamp measuring 4-inches in depth and constructed of chromic-anodized aluminum.

Specifications

• Shape:
  ATI
• Size:
  3 in
• Depth:
  4 in
• Material:
  Aluminum
• Finish:
  Chromic-Anodized
• Associated Screw Component Number:
  MS51958-65B, MS51958-67B

Product Codes

• Mfr Part No
  123-03004A3N
