KNI 582 Radio Magnetic Indicator | 5V, Black

KNI 582 Radio Magnetic Indicator | 5V, Black

BENDIXKING

Call For Pricing
In stock
EDMO # 03060-0001
MFR Part # 066-03060-0001
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

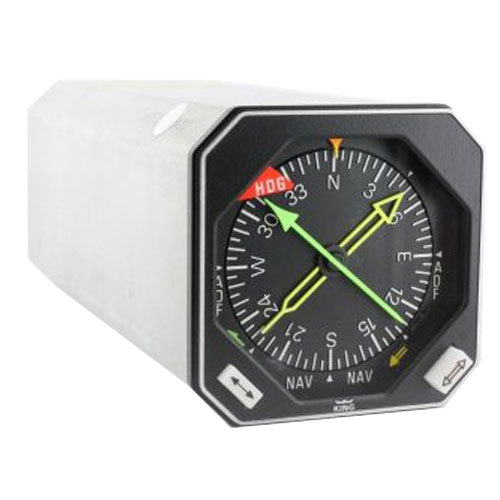

The KNI 582 Radio Magnetic Indicator reduces workload by displaying three data points at once. First, it shows the magnetic heading of an aircraft on the compass card. Second (and third) the indicator's two needles can be each switched to present either directional or non-directional radio navigation data. This switching is accomplished easily with two push buttons on the front of the indictor. Combining all this information in one device, gives a faster grasp of an aircraft's overall situation.

Features

  • Use the KNI 582 with the following:
  • Navigational receivers: KN-53, KNS-80/81, KX-155/165, KX-170B/175B, KNR-615/630/634, KNR-665/665A
  • ADF receivers: KR 87, KDF 800/805/8000
  • Compass systems: KCS-55/55A, KCS-305
  • Navigational formats: Dual Input OBI AC Sin/Cos; VOR Composite/ILS Eng; Dual OBI Clock Sync/Data

Specifications

  • Weight:
    3 lb (1.36 kg)
  • Dimensions:
    3.25 x 3.25 x 8.0 in (8.26 x 8.26 x 20.32 cm)
  • Power Required:
    11 – 33 VDC @ 400 mA max.
  • Lighting Power:
    5 VDC/AC

Related Products

Product Codes

  • Mfr Part No
    066-03060-0001
  • SCHEDULE B CODE
    8531.20.0020
  • TSO
    C6c, C40a, C41c
