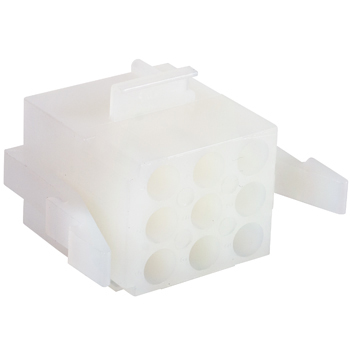

Commercial Mate-N-Lok Socket Housing Connector | 9 Circuits
TE CONNECTIVITY
EDMO#: 1-480274-0
MFR#: 1-480274-0
Tariff fee may apply
Description
Commercial Mate-N-Lock socket housing connectors allow wire bundles and harness to interface with other wire bundle or panel connections.
This Mate-N-Lok socket housing (EDMO# 1-480274-0) features a 9-socket matrix style socket connection and mates with pin housing 1-48277-0.
Features
- Mates with Mate-N-Lok pin housing 1-480274-0
- 9-socket matrix style connector
- Provides a positive lock with receptacle
Specifications
Dimensions:
1.005 x 0.850 x 0.640 in
Number of Contacts:
supports up to 9
Material:
Nylon, natural color
Socket Type:
panel type
Voltage Rating:
250 V
Flammability Rating:
UL94V-2
Style:
Matrix
Housing Type:
Socket housing
Mates with:
350642-1 & 305577-1
Product Codes
Mfr Part No :
1-480274-0
ECCN :
EAR99
SCHEDULE B CODE :
8538.90.6000
