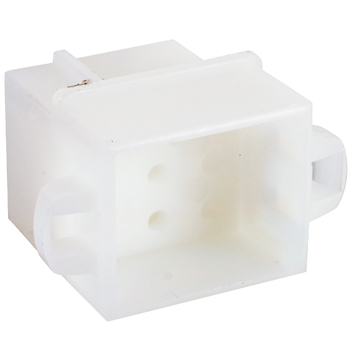

Commerial Mate-N-Lok Pin Housing Connector | 9 Circuits
TE CONNECTIVITY
EDMO#: 1-480277-0
MFR#: 1 4802770
Tariff fee may apply
Description
Commercial Mate-N-Lok pin housing connecter allows wire bundles and harness to interface with other wire bundle or panel connections.
This Mate–N-Lok pin housing connector (EDMO# 1-480277-0) features 9-pin matrix style connection with PM positive lock and mates with receptacle socket 1-480274-0.
Features
- Mates with socket 1-480274-0
- 9-pin matrix style connector
- Wire-to-wire and wire-to-panel connections
- Provides a positive lock with receptacle
Specifications
Dimensions:
0.85 x 0.81 x 0.93 in (21.59 x 33.27 x 23.62 mm) max.
Number of Circuits:
9
Recommended panel thickness:
0.025 – 0.065 in
Housing Type:
Pin: PM positive lock pin housing
Material:
Nylon, natural color
Voltage Rating:
250 V
Flammability Rating:
UL94V-2
Mates with:
socket 1-480274-0
Product Codes
Mfr Part No :
1 4802770
ECCN :
EAR99
SCHEDULE B CODE :
8536.90.4000
