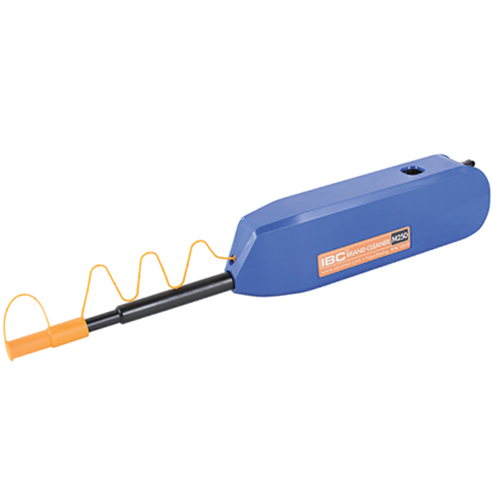

2.5 mm Fiber Optic Cleaning Tool | SC, ST, FC E2000, TFOCA


IBC

EDMO#: 13310

MFR#: 13310

Description

Fiber optic pin and socket connector cleaners are mechanical cleaning tools designed to clean connectors residing in an adapter or faceplate and unmated connectors. These cleaning tools use a dry cleaning strand to gently sweep and lift away dust and residues from the connector end face. A simple pushing motion engages the tool followed by an audible click informs the user when the tool is fully engaged.


This variant (EDMO# 13310) cleans 2.5 mm based connector systems and has a 1.8 mm cleaning region. Works with connector types SC, ST, FC E2000, and TFOCA.

Features

  • Simple push motion engages the tool
  • Audible click sound alerts the operator when full engaged
  • Lanyard attached dust cap prevents lost caps
  • Provides over 525 cleaning cycles per tool
  • Non-fraying cloth design
  • RoHS compliant



Effectively removes the following contaminates:

  • Arizona Road Dust (ISO 12103-1)
  • Skin oil residue
  • Salt water residue
  • Alcohol residue
  • Vegetable residue
  • Hand lotion
  • Distilled water residue
  • Graphite
  • T-shirt lint

Specifications

Weight:
68 g

Dimensions:
194 x 23 x 34 mm

Style:
Push Style Port Cleaner

Connector Type:
SC, ST, FC E2000, TFOCA

Cleaning Function:
In Situ or Unmated Cable Assembly

Use Type:
Disposable

Ferrule Size:
2.5 mm

Number of Cleans:
Over 525

Compliant with EU/95/2002/EC Directive (RoHS)

Product Codes

Mfr Part No :

13310

ECCN :

7B994

SCHEDULE B CODE :

9014.80.6000
