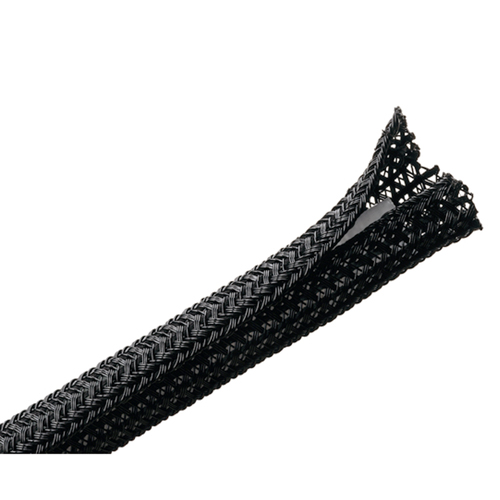

Split Wrap Braided Sleeving | 1in Ø, Black, 400ft Reel

Split Wrap Braided Sleeving | 1in Ø, Black, 400ft Reel

HELLERMANNTYTON

Call For Pricing
Available to order
EDMO # 170-03136
MFR Part # 170-03136
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Split wrap braided sleeving is a lateral, semi-rigid braided sleeving configured for ease of installation and allows repeated access to the wire bundle when required. The lateral split allows the sleeving to open and accommodate a variety of bundling requirements. The 25% edge overlap rolls back over connectors and splices without exposing the bundled wires.

This Split wrap braided sleeving (EDMO# 170-03136) has a 1-inch diameter and colored black. Ships on a 400-foot reel.

Features

  • Center-slit overlapping design allows quick and easy access to the wires and cables for maintenance and inspection
  • Flexible material allows easy wrap around a variety of component shapes and sizes, making it simple to use
  • Unique woven pattern provides increased coverage and greater resistance to abrasion, dust and debris
  • Overlapping design enhances flexibility without exposing wire and cables

Specifications

  • Length:
    400.0 ft (121.9 mm) Bundle Diameter: 0.1 in (2.54 mm), min. Bundle Diameter: 1 in (25.4 mm), max. Diameter: 1.0 in (25.4 mm Nominal Diameter: 1 in (2.54 mm) Wall Thickness: 0.038 in (0.97 mm) Material: Polyester (PET) Material Shortcut: PET Flammability: UL 94 V-0 Halogen Free: Yes UV Resistant (Yes/No): Yes Use Conditions: For Indoor and Outdoor Use Operating Temperature: -94°F to +257°F (-70°C to +125°C) Reach Compliant (Article 33): Yes ROHS Compliant: Yes UL Recognized (US): Yes

Product Codes

  • Mfr Part No
    170-03136
  • SCHEDULE B CODE
    3917.32.0000
