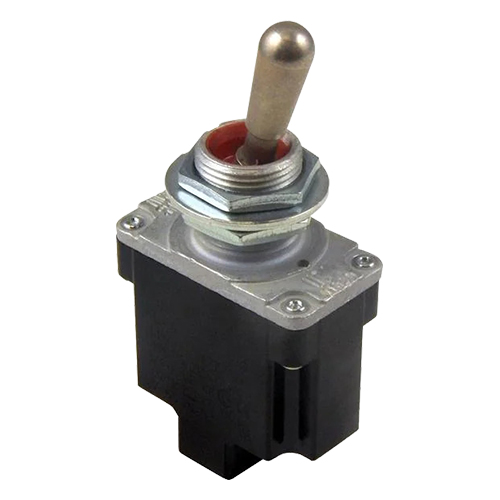

TL Series Micro Toggle Switch | SPST, ON(MOM)-OFF

Product Description

The Micro Switch TL Series toggle switches are sealed to military specifications, MIL-DTL-3950. These sealed toggle switches feature a bonded seal between the toggle lever and bushing, as well as between the cover and case. The robust design makes the 1TL1 series ideal for many military and aerospace applications where reliability is critical. These switches are designed for applications in environments where the panels are subjected to mechanical shock, vibration, and temperature extremes, as well as environments with dust, splashing or hose-directed water. The TL Series toggle provides reliable performance and a long operating life under tough conditions.

Version 1TL1-6 is a single-pole, single-throw toggle switch. Positions: ON(momentary)-OFF

Specifications

• Dimensions: 26.7 x 33.5 x 22.6 mm (1.05 x 1.32 x 0.89 in)
• Military part number: MS24523-30
• Circuitry: SPST
• Sealing: qualified to MIL-DTL-3950
• Operating temperature: -65°C to 71°C (-85°F to 160°F)
• Switch Mounting: Panel
• Contact Voltage AC: 277V, nominal
• Contact Voltage DC : 250V, nominal
• Switch Terminals: Screw
• Illumination: Non-Illuminated
• Action: 2 position
• Mounting: Bushing 15/32 in
• Actuation: Standard
• Amp Rating : Up to 20A, AC and DC capability, maximum
• Approvals: UL, CSA, CE

Product Codes

• Mfr Part No
  1TL1-6

Documentation

• TL Series Datasheet
