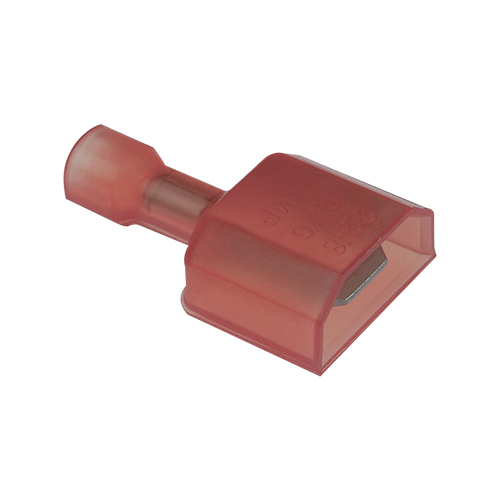

Ultra-Fast 250 Nylon Fully Insulated Tab | Red, 22-18AWG

Ultra-Fast 250 Nylon Fully Insulated Tab | Red, 22-18AWG

TYCO

EDMO#: 2-520103-2

MFR#: 2-520103-2

Tariff fee may apply

Tariff Warning Icon

Description

The Ultra-Fast FASTON receptacle and tab offers the advantage of a completely protected terminal. The fully insulated crimp termination ensures electromechanical performance. The user-friendly design combines easy mating with rounded corners eliminating exposed leads.

Features

  • Fully insulated
  • Correct lead-in tab design
  • Funnel wire entry
  • Wire stop
  • Transparent insulation
  • Visual inspection of crimp and wire brush
  • Color-coded
  • Marked with sizing

Specifications

Wire size:
22-18 awg

Mating tab width:
0.25 in.

Mating tab thickness:
0.032 in.

Overall length:
0.855 in.

Mating retention type:
Dimple

Terminal orientation:
Straight

Contact base material:
Brass

Plating material:
Tin

Insulation material:
Nylon

Crimp type:
F-Crimp

Barrel type:
Closed

Terminal type:
Tab

Voltage:
600V max

Product Codes

Mfr Part No :

2-520103-2

ECCN :

EAR99

SCHEDULE B CODE :

8536.90.4000
