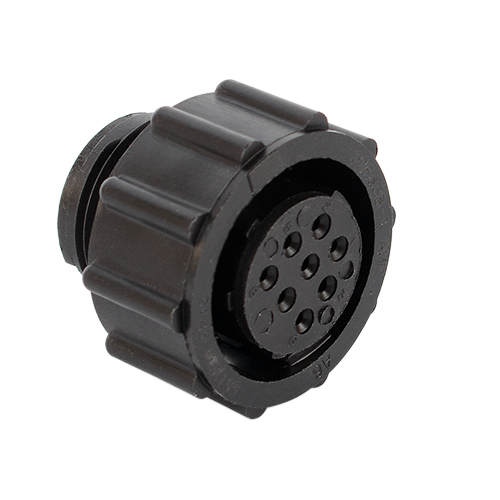

Series 2 CPC Connector Receptacle | Size 11 Shell, 8-Position, Free Hanging, Thermoplastic

Series 2 CPC Connector Receptacle | Size 11 Shell, 8-Position, Free Hanging, Thermoplastic

TE CONNECTIVITY

Call For Pricing
A tariff fee of $1.4725 EA may apply.
In stock
EDMO # 205838-1
MFR Part # 2058381
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Series 2 CPC connectors are constructed with thermoplastic material providing a flammability rating of UL 94 V-0.

This circular connector receptacle (EDMO# 205838-1) features a size 11 shell size, 8 contact positions, and has a free-hanging mounting receptacle. Thermoplastic construction.

Features

  • Free-Hanging mounting style
  • Series 2 CPC circular connector
  • Uses type S20 DM & DF crimp Snap-in contacts

Also Purchased

Specifications

  • Height
    : 24.76 mm Diameter: 24.76 mm Connector Type: standard circular connector series 2 Housing Material: thermoplastic Mating Style: threaded Mounting Angle: straight: Mounting Style: free hanging Number of Positions: 8 position Shell Size: 11 Shell Style: plug Thread Size: 5/8-24 Flammability Rating: UL 94 V-0

Related Products

Product Codes

  • Mfr Part No
    2058381
  • CSA
    LR7189
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.90.4000
  • UL
    E28476
