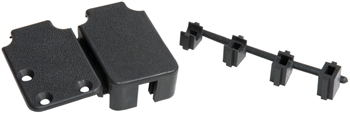

Unshielded Standard Cable Clamp Kit | #2 Shell Size, 15-postion

Product Description

Unshielded cable clamps allow the cable to exit the back shell at a straight/90° angle. They can be used with on either plugs or receptacles and will not interfere with commonly used hardware such as male screw retainers, female screw locks, or spring latches and latching blocks. The hinged assembly allows for easy installation over a wire harness.


This 15-positions, unshielded cable clamp kit (EDMO# 207470-1) features a #2 shell size and a 2-entry cable angle to provide a straight or 90° cable exit.

Specifications

• Dimensions:
  0.755 x 0.63 in (19.18 x 16 mm)
• Cable Diameter:
  8.13 mm
• Cable Entry Angle:
  Variable (straight/90°)
• Connector Type:
  D-Sub backshells
• Number of Cable Entries:
  2
• Number of Positions:
  15-positions
• Shell Size:
  2(A)
• Shell Material:
  Thermoplastic
• Shell Plating:
  plastic

Product Codes

• Mfr Part No
  207470-1
• MIL SPEC
  MIL-C-24308
• CSA
  FILE NO. 1088108, LR:7189-207
• MIL SPEC
  MIL-C-24308
• SCHEDULE B CODE
  8203.20.6060
• UL
  E81956
