UHF Whip Antenna | 380-470MHz
CHELTON
EDMO#: 21-68TP3
MFR#: 21-68TP3
Description

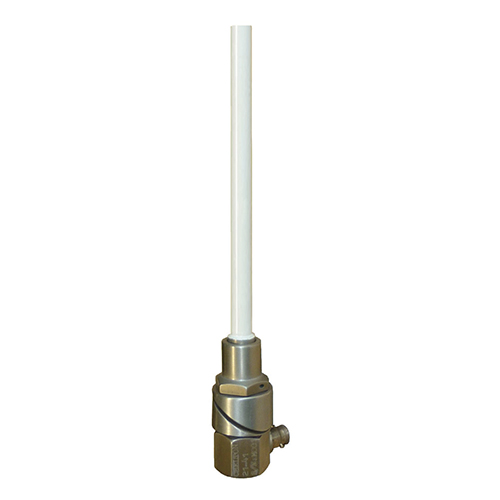

The 21-68 Whip Antenna provides communications in the frequency range 380 MHz to 470 MHz. The antenna is configured as a whip type monopole and is intended for use in general subsonic airborne applications. The antenna comprises a cylindrical aluminum alloy element within a protective composite sleeve that is fitted to an aluminum alloy, mounting block. The block provides the single RF connector (BNC).
Features
- Frequency range 380MHz - 470MHz
- Whip style monopole
- Omnidirectional radiation pattern
- Vertical polarization
- BNC connector
- Gloss white epoxy finish
Specifications
Weight:
2.20 lb
Dimensions:
8.35 in. length, 0.92 in. width
Frequency:
380 MHz - 470 MHz
Gain:
0 dBi (minimum)
Power Rating (RF power):
25 W CW (maximum)
Impedance:
50Ω, nominal
Radiation Pattern:
Omnidirectional in azimuth
VSWR:
< 2.5:1
Polarization:
vertical when mounted vertically
Connectors:
BNC
Mounting Configuration:
Single hole self-fixing
Product Codes
Mfr Part No :
21-68TP3
Documentation
