NYLO-Seal Male Run Tee | Fits 1/4in Tubing, 1/8in Pipe Thread
SEAL PLASTICS INC
EDMO#: 271N04X02
MFR#: 271N04X02
Description
NYLO-Seal Nylon Male Run Tees have excellent resistance to acids, alkalis, dilute mineral acids, most organic acids, petroleum oils and greases, and photographic solutions. Installation time is reduced with NYLO-Seal fittings when compared to regular compression or flare fittings. Also, stress on the tubing is relieved during installation as the nut revolves around the sleeve as it is being tightened, which prevents torque from being transmitted to the tubing, to provide an excellent seal and ensures reliability. NYLO-Seal Nut & Sleeves are made of molded nylon to be strong and resistant to abuse, and the acetal copolymer sleeves provide maximum performance. They can continuously operate at temperatures of 200°F and intermittently at temperature as high as 250°F. NYLO-Seal fittings are excellent for instrument, lubricant, air, hydrocarbon fuel, oil coolant, low pressure hydraulic lines, laboratory, and chemical applications.

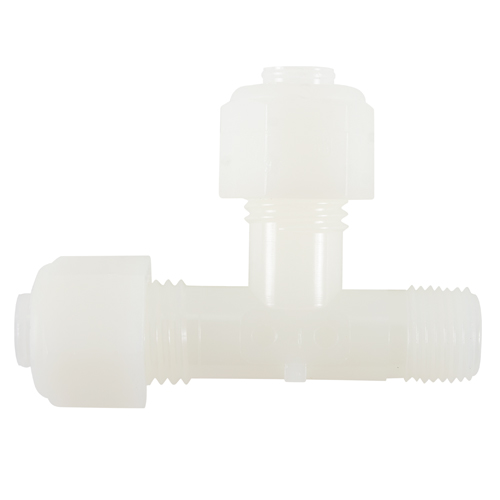

This NYLO-Seal male run tee (EDMO# 271N04X02) fits 1/4-inch tubing and has a 1/8-inch pipe thread.
Features
- Excellent resistance to chemicals
- Reduces installation time
- Eliminates stress on plastic tubing during installation
- Exceptionally strong and resistant to abuse
- Continual Operation at temperatures as high as 200°F
- Couples most types of thermoplastic tubing
- Excellent for instrument, lubricant, air, hydrocarbon fuel, oil coolant, low pressure hydraulic lines, laboratory, and chemical applications
Specifications
Type:
Tube to Male Pipe Thread to Tube
Tube Size:
1/4 in O.D. (271N04X02)
Pipe Thread:
1/8 in
Maximum Working Pressure:
250 PSI
Materials:
Molded Nylon Bodies and Nuts. Acetal Copolymer Sleeves (Celcon®)
Compatible Tubing:
NYLO-SEAL fittings can be used to couple to most types of thermoplastic tubing
Product Codes
Mfr Part No :
271N04X02
ECCN :
EAR99
SCHEDULE B CODE :
3917.40.0000
