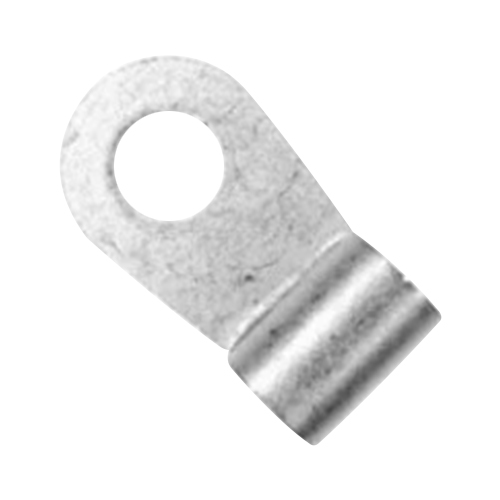

4 AWG Ring Terminal | Flag, Tin-Plated Copper, 5/16 Stud Size, Uninsulated

4 AWG Ring Terminal | Flag, Tin-Plated Copper, 5/16 Stud Size, Uninsulated

TE CONNECTIVITY

Call For Pricing
A tariff fee of $0.7725 EA may apply.
In stock
EDMO # 321060
MFR Part # 321060
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Solistrand ring terminals (EDMO# 321060) are tin-plated, four-gauge wire terminals. These terminals fit onto 5/16-inch studs (M8).

Features

  • 4 AWG ring terminal
  • Fits 5/16-inch (M8) studs
  • Tin-plated copper construction
  • Non-insolated

Also Purchased

Specifications

  • Weight:
    7.134 g per piece
  • Wire Size:
    4 AWG, 16.8 – 26.7 mm2, 33100 – 52600 CMA
  • Tongue Thickness:
    1.3 mm (0.051 in)
  • Overall Length
    : 32.46 mm (1.278 in)
  • Barrel I.D.:
    7.11 mm (0.28 in)
  • Stud Diameter:
    8.33 mm (0.328 in)
  • Specification
    Stud Size: 5/16, M8
  • Terminal & Splice Type:
    Ring Tongue
  • Terminal Orientation:
    Flag
  • Specification
    Terminal Angle: Straight
  • Barrel Type:
    Closed
  • Sealable:
    No
  • Insulated:
    No
  • Wire/Cable Type:
    Regular
  • Shape Description:
    RING-091
  • Number of Holes:
    1
  • Plating Material:
    Copper, Tin
  • Wire Insulation Support:
    None
  • Operating Temperature:
    170°C (338°F)

Related Products

Product Codes

  • Mfr Part No
    321060
  • CSA
    LR7189
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.90.4000
  • UL
    E13288
