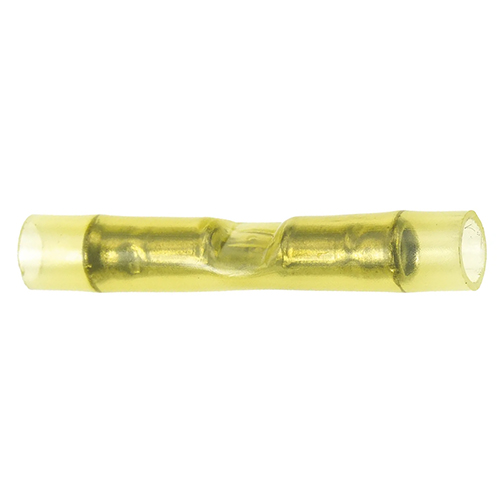

PIDG Butt Splice Connector | 26-22 AWG, Yellow Translucent

BUTT SPLICE/Female, insulated, yellow, copper material, nylon insulation, 300 VAC. For use with 26-24 gauge wire.

TE CONNECTIVITY

Call For Pricing
In stock
EDMO # 323994
MFR Part # 323994
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

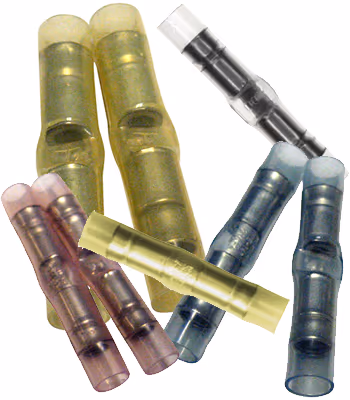

Pre-insulated diamond grip (PIDG) in-line butt splice terminals consist of a precision-formed metal wire barrel and a copper sleeve encased in insulating material made of nylon. The wire barrel contains serrations that provide maximum contact and tensile strength after crimping the terminal, splice, or end cap onto the wire.

Features

  • 26-22 AWG wire
  • Color-coded body (yellow)
  • Solderless
  • Serrated barrel
  • Copper sleeve
  • Tin-plated

Also Purchased

Specifications

  • Wire size:
    26-22 AWG
  • Wire insulation diameter:
    0.082 in. (2.08 mm)
  • Splice material:
    Copper
  • Plating material:
    Tin
  • Color:
    Yellow translucent
  • Insulation sleeve material:
    Nylon

Related Products

Product Codes

  • Mfr Part No
    323994
  • MIL SPEC
    M7928/5-1
  • ECCN
    EAR99
  • MIL SPEC
    M7928/5-1
  • SCHEDULE B CODE
    8536.90.4000
