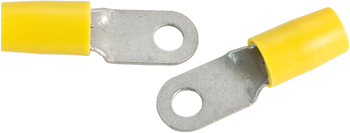

PIDG 1/4-inch Ring Terminal | 4 AWG Wire Size

RING TERMINAL/6.35 mm stud/tab size, female, insulated, yellow, tin plating, copper material, nylon insulation. For use with 4 gauge wire.

TE CONNECTIVITY

Call For Pricing
In stock
EDMO # 324050
MFR Part # 324050
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.

This ring terminal (EDMO# 324050) has yellow insulation, a 1/4-inch stud size, and used on 4 AWG wire.

Features

  • Yellow nylon insulation material
  • Tin-plated copper conductor
  • Exceeds requirements of SAE AS7928, Type II, Class 1 and 2

Also Purchased

Specifications

  • Color:
    yellow Contact Material: tin-plated copper Insulation: nylon Mounting Style: screw Product Type: ring terminal Stud / Tab: 1/4 in stud size Termination Style: crimp Voltage Rating: 300V Wire Gauge: 4 AWG

Related Products

Product Codes

  • Mfr Part No
    324050
  • MIL SPEC
    MS25036-123
  • ECCN
    EAR99
  • MIL SPEC
    MS25036-123
  • SCHEDULE B CODE
    8536.90.4000
