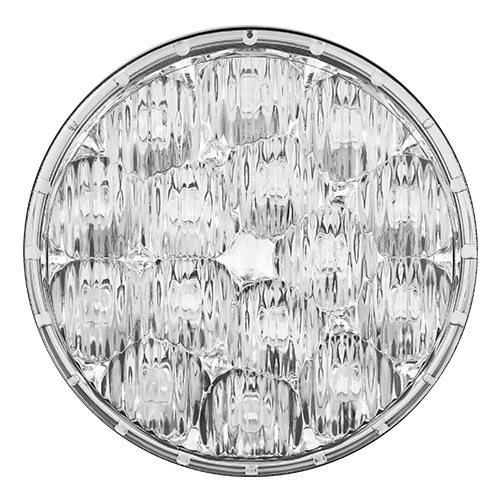

SunSpot 36 100W LED Taxi Light | 28 V, WigWag

Product Description

The 100-watt SunSpot 36 is the highest-performing PAR36 taxi light manufactured by AeroLEDs, utilizing a precision Fresnel lens to deliver a broad and consistent 20° × 50° beam optimized for taxiing, ground maneuvering, and runway visibility. Compared to the 75-watt taxi model, the 100-watt version provides a wider beam spread and approximately 70% greater total light output, filling the beam with more usable illumination for improved contrast, obstacle detection, and surface definition during ground operations.

Designed for pilots who demand maximum performance, the 100 watt SunSpot 36 Series provides superior total light output and beam quality while drawing less power than traditional incandescent lamps. Its high-efficiency optical system produces a clean, daylight-white color temperature that reveals the true color and contrast of runway markings and terrain—eliminating the dull, amber cast of legacy bulbs. Built to withstand the rigors of flight, every SunSpot 36 light mounts directly into standard PAR36 housings for straightforward installation.

The H Models feature AeroLEDs’ Integrated Pulse (WigWag) Technology, improving aircraft conspicuity while operating without external controllers and drawing up to 50% less current during use.

This SunSpot 36 100W LED taxi light (EDMO# 36-4587-H) is a 28-volt unit with WigWag.

Specifications

• Weight:
  11.5 oz
• Dimensions:
  4.4 x 4.4 x 2.1 in
• Mounting:
  Fits standard PAR 36 mounts
• Voltage:
  18–30 VAC/DC, 28 VAC/DC (Nominal)
• Current:
  3.6 A @ 28 VDC
• Power:
  100 W
• Peak Candela:
  60k (Peak)
• Beam Profile:
  20º Vertical x 50º Horizontal (@ 10% Peak)
• Lifespan:
  30,000 hours
• Lens Material:
  UV-coated polycarbonate
• Approvals:
  FAA-PMA/STC

Product Codes

• Mfr Part No
  01-1030-4587-H
• SCHEDULE B CODE
  8539.10.0030
