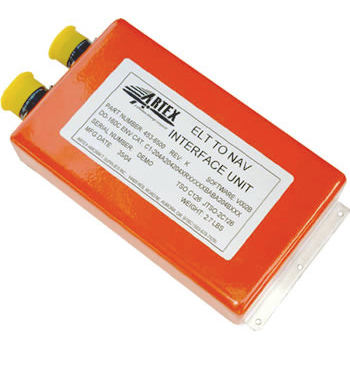

ELT to NAV Interface

ELT to NAV Interface

ACR ELECTRONICS / ARTEX

Call For Pricing
Available to order
EDMO # 453-6500
MFR Part # 453-6500
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This ELT to NAV interface connects the aircrafts Flight Management Computer (FMC) or GPS receiver with an Artex 406MHz Series of ELTs (G406-4, C406-1, C406-2, C406-1 HM, C406-2 HM). This ELT navigation interface is capable of providing information such as type of aircraft, owner, emergency contacts, country code, aircraft ID or ELT serial number, ELT manufacturer, and latitude and longitude position when properly registered.

Features

  • Works with 28V aircraft systems only
  • Allows the ELT to transmit latitude and longitude of the aircraft
  • Connects C406 and G406 series ELTs to the aircraft Flight Management Computer or GPS receiver
  • Programs ELT with the 24-bit address of the aircraft
  • Compatible with Garmin, UNSD, ARNAV, IIMorrow, Bendix King systems
  • *Note: this unit does not come with install kit. For unit with install kit use part number 455-6500.

Specifications

  • Weight: 2.7 lb (1.2 Kg)
  • Dimensions: 9.25 x 5 x 1.95 in
  • Vibration: 10 G(5 Hz to 2000 Hz)
  • Shock Test: 500 G @ 4 mSec
  • Crash Worthiness: 100 G @ 23 mSec
  • Altitude: 50,000 FT
  • Impact: 220 PSI (25 Kg from 6 in)
  • Crush: 1000 lb
  • Interface: ARINC 429- all RS-232- 9600 baud, parity: none, data bits: 8, stop bits: 1, STX & ETX required, ""A"" identifier for lat; ""B"" identifier for long
  • NAV Systems: GPS-loran-inertial NAV-FMC
  • Operating Temperature: -20°C to +55°C
  • Voltage requirements: +28VDC ±5VDC
  • Current Draw: 300mA maximum

Product Codes

  • Mfr Part No
    453-6500
  • ECCN
    7A994
  • ETSO
    2C126
  • SCHEDULE B CODE
    8525.10.8040
  • TSO
    C126
