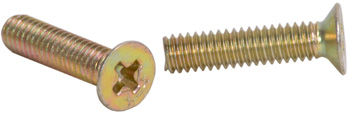

NAS514P832-12P Phillips Flat Head Countersunk Screw | 3/4 in. Length, 8-32 Threads

Product Description

NAS514P Series countersunk screws feature a 100 degree flat head and are made of cadmium chromate plated alloy steel material.

This Phillips head countersunk screw (EDMO# 514P83212P) has a length of 3/4-inch and a 8-32 thread size.

Specifications

• Thread Class:
  3a
• Thread Direction:
  Right-hand
• Thread Length:
  0.589 – 0.682 in
• Fastener Length:
  0.719 – 0.750 in
• Head Style:
  Flat countersunk
• Head Diameter:
  0.282 – 0.332 in
• Internal Drive Style:
  Cross recess type 1
• Nominal Thread Diameter:
  0.164 in
• Thread Quantity Per Inch:
  32
• Minimum Tensile Strength:
  125000 lb/sq. in
• Countersink Angle:
  99° – 101.0°
• Screw Material:
  Steel comp 4037 or steel comp 8630
• Screw Surface Treatment:
  Cadmium and chromate
• Thread Series Designator:
  UNJC

Product Codes

• Mfr Part No
  NAS514P832-12P
• ECCN
  EAR99
• NAS
  NAS514P832-12P
• SCHEDULE B CODE
  7408.29.0000
