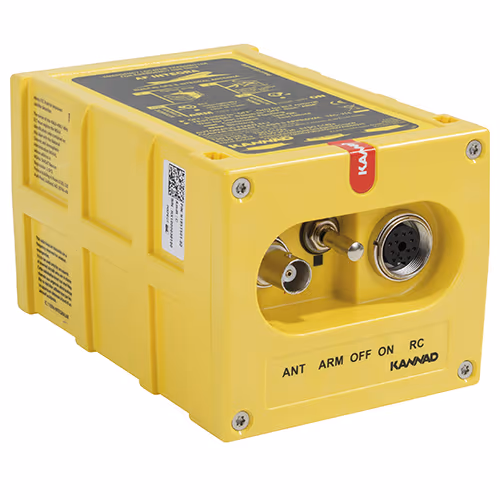

Integra AF/ER ELT

MCMURDO

Call For Pricing

Available to order

EDMO # 51501-01

MFR Part # S1851501-01

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Integra 406 ELT offers an efficient option for installing or retrofitting a 406 MHz ELT with GPS capabilities in individual or fleet aircraft. The Integra ELT transmits distress signals and location data via a 406 MHz signal to the COSPAS-SARSAT network of satellites in conjunction with a homing signal on 121.5 MHz. The Integras GPS capabilities make it possible for the ELT to send exact GPS coordinates for a crash site location — further narrowing the search area to 0.03 square miles while lowering response times to as little as 30 minutes.

Features

This Integra AF/ER ELT (EDMO# 51501-01) includes:
The ELT transmitter and battery
Features:
Automatic fixed, extended temperature range (AF/ER) emergency locator transmitter
Operates on 406 MHz and 121.5 MHz frequencies
Integrated internal 406 MHz backup antenna
Lightweight and compact size
Operating temperature as low as -40C for 24 hours on 406 MHz and over 48 hours on 121.5 MHz
Does not require an external power supply
Remote control panel offers optional 2-wire or 3-wire installations
Universal mounting bracket provides easy retrofitting
Weight: 1.873 lb (850 g), including batteries
Dimensions: 6.89 x 3.90 x 3.40 in (175 x 99 x 88.4 mm)
Approvals: COSPAS-SARSAT, RTCA DO-160, TSO-C126a, C142a and ETSO 2C91a, 2C126, C142a

Specifications

Weight:

1.873 lb (850 g), including batteries
Dimensions:

6.89 x 3.90 x 3.40 in (175 x 99 x 88.4 mm)
Frequency:

406.037 MHz 121.5 MHz
Color:

yellow
Material:

molded plastic
Functions:

integrated 406 MHz antenna built-in GPS (antenna/receiver)
Battery:

6-year replacement interval accessories are powered by ELT battery
Interfaces:

DIN12 socket for remote control panel and programming dongle BNC antenna connector
Controls and Indicators:

Arm/Off/On switch bright red LED internal buzzer outside buzzer option
Operating Lifetime:

-20°C: 24 hr, (class 2 ELT), min. -40°C: 24 hr, (clase 1 ELT), min.
Approvals:

COSPAS-SARSAT Class 2 (-20°c to +55°c) or class 1 (-40°C to +55°C) ER type RTCA DO-160/EUROCAE ED14 Environmental conditions TSO-C126a, C142a and ETSO 2C91a, 2C126, C142a
