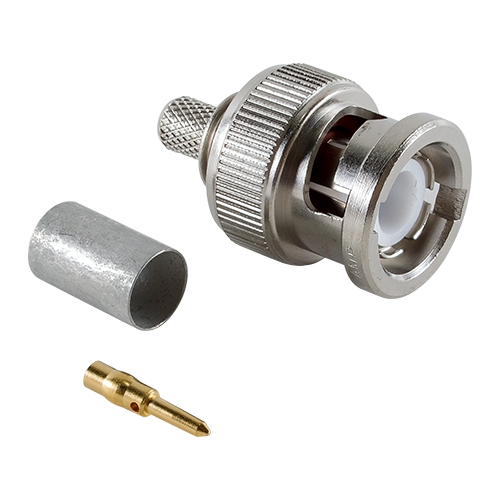

BNC Dual Crimp Plug Connector | RG-142, RG-142A, RG-142B​

BNC Dual Crimp Plug Connector | RG-142, RG-142A, RG-142B​

TE CONNECTIVITY

Call For Pricing
In stock
EDMO # 5225395-6
MFR Part # 5225395-6
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The RF BNC connector with bayonet locking coupling provides highly reliable, quick connect/disconnect coaxial connections. Dual crimp, straight, BNC connector plug for use with RG 142, RG 142A, RG 142B coaxial cable.

Features

  • Dual crimp
  • Bayonet coupling
  • Wire and cable connector
  • Gasket connector seal
  • Single port
  • Straight body
  • 50 ohms
  • Gold-plated, brass center contact
  • Fluoropolymer dielectric material
  • Hex-style crimping recommended by manufacturer

Also Purchased

Specifications

  • Dimensions:
    0.572 in
  • RF Interface:
    BNC
  • RF Connector Style:
    Plug
  • Port Configuration:
    Single port
  • Impedance:
    50Ω
  • Orientation:
    Straight
  • Body Material:
    Brass
  • Body Plating Material:
    Nickel
  • Contact Material:
    Brass
  • Contact Plating Material:
    Gold
  • Cable Type:
    RG 142, RG 142A, RG 142B
  • Operating Temperature:
    -55 – 85 °C (-67 – 185 °F)
  • Operating Frequency:
    4 GHz
  • Compliance:
    RoHS

Related Products

Product Codes

  • Mfr Part No
    5225395-6
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.69.4010
