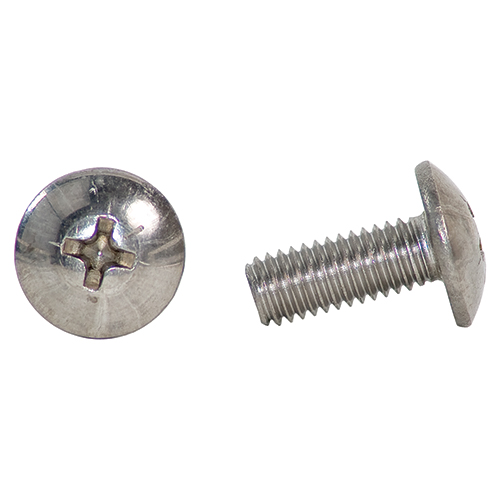

AN526C1032R8 Truss Head Machine Screw | 10-32 Thread, 1/2-inch Length, 0.448-inch Phillips Head

Product Description

This AN526C series truss head machine screw (EDMO# 526C1032R8) has 10-32 threads, a 0.448-inch Phillips head, and is 1/2-inch in length. It is also made of stainless steel.

Specifications

• Thread Class:
  2a
• Thread Direction:
  Right-hand
• Thread Length:
  0.5 in
• Fastener Length:
  0.5 in
• Head Style:
  Pan Head
• Head Diameter:
  0.425 – 0.448 in
• Internal Drive Style:
  Cross recess type 1
• Nominal Thread Diameter:
  0.190 in
• Thread Quantity Per Inch:
  32
• Minimum Tensile Strength:
  55000 lb/sq. in
• Screw Material:
  Stainless Steel
• Thread Series Designator:
  UNC

Product Codes

• Mfr Part No
  AN526C1032R8
• MIL SPEC
  AN526C1032R8
• ECCN
  EAR99
• MIL SPEC
  AN526C1032R8
• SCHEDULE B CODE
  7408.29.0000
