M655 Multi-Function Indicator Gauge | NVG, 2-1/4 Mount, O.A.T. ºC/ºF, Pressure/Density Altitude, DC Voltage

Product Description

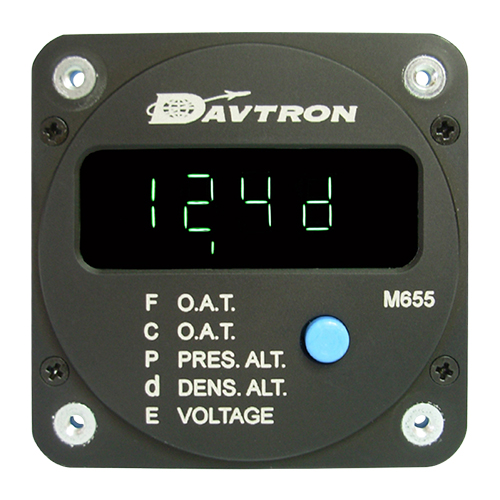

The M655 series is a multi-functioning gauge combining readouts for: outside air temperature ºC/ºF, pressure altitude, density altitude, and aircraft voltage. The digital probe with 12 ft cabling sends an accurate reading to the panel mount, super bright, sunlight readable display.

This M655 series multi-function indicator gauge (EDMO# 655-2-NVG) is 2-1/4-inch standard clock mount or front mount with temperature probe and NVG green A lighting.

Specifications

• Weight:
  5 oz
• Dimensions:
  2.375 x 1.45 x 2.375 in
• Density Altitude:
  -10,000 to 30,000 ft
• Pressure Altitude:
  -1,000 to 62,700 ft
• Temperature Range:
  –55°C to 100°C ± 2°C (typical)
• Voltage Range:
  10 V to 32 V ± .2 V (typical)
• Input Voltage:
  14 or 28 V
• Input Vurrent:
  0.35 A max

Product Codes

• Mfr Part No
  M655-2-NVG
• ECCN
  7A994
• PMA
  PQ1062NM
• SCHEDULE B CODE
  9104.00.0000

Documentation

• M655 Brochure
