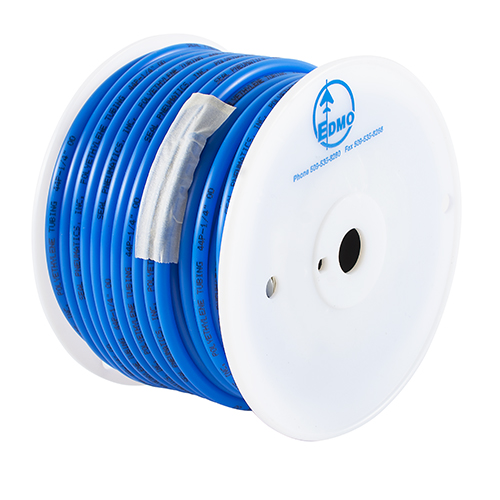

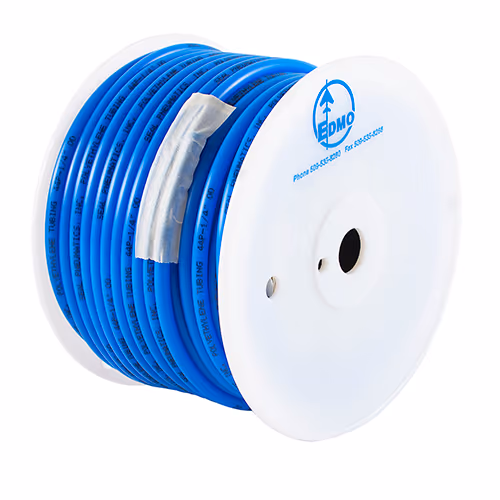

Poly-Flo Polyethylene Tubing | 3/8in O.D., Blue

Product Description

Poly-Flo tubing is ideal for use in pneumatic lines, pitot and static lines, instrumentation systems, and water lines (as well as limited food service). It is constructed with low-density polyethylene to provide dimensional stability; a strong form structure; and high resistance to heat, stress, sunlight, many solvents and chemicals, as well as vermin attacks.


This polyethylene tubing (EDMO# 66PB) has a 3/8-inch outside diameter and a blue color.

Specifications

• Material:
  Polyethylene
• Tube O.D.:
  3/8 in
• Wall Thickness:
  0.0062 in
• Bend Radius:
  2 in
• PSI @ 75°F:
  205 psi
• PSI @ 150°F:
  80 psi
• Fitting Type:
  barb. compression push-in
• Temperature Range:
  -40°F to 150°F
• Vacuum Rating:
  28 inHg
• Diameter Tolerances:
  ±0.002 in (±0.004 all sizes)
• Hardness:
  50 shore D
• Tube Markings:
  Seal Plastics Spec.
• Working Pressure:
  3:1 safety factor

Product Codes

• Mfr Part No
  66PB
• ECCN
  EAR99
• SCHEDULE B CODE
  3917.29.0090
