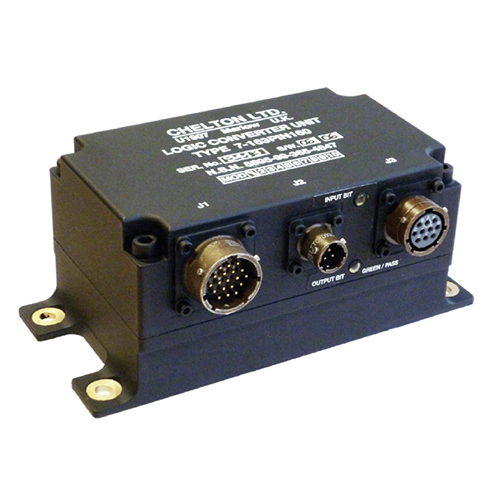

Logic Converter Unit | Type 7-163PIN160

Product Description

The 7-163PIN160 Logic Converter Unit (LCU) takes frequency information from the radio and matches the performance of the antenna to that frequency. The LCU terminates and validates the control signals from the radio, extracts the frequency information, translates it to a tuning command, and provides the required drive signals to tune the antenna via the parallel bus at the output connector.

Specifications

• Weight:
  2.2 lb
• Dimensions:
  2.63 x 6.28 x 3.06 in.
• DC power input:
  16-32V
• Connectors:
  MS3112E 14-19P, MS3112E 8-33P, MS3112E 12-10S
• Temperature:
  -40°C to +71°C
• Altitude:
  70,000 ft

Product Codes

• Mfr Part No
  7-163PIN160-0606
