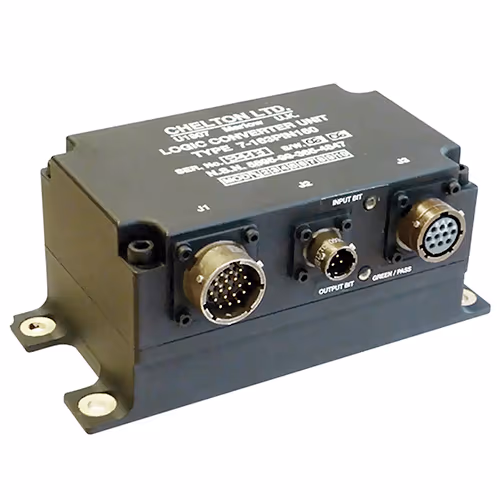

7-163PIN160 Logic Converter Unit | Extended Temperature version

CHELTON

Call For Pricing

Available to order

EDMO # 7163PIN16H

MFR Part # 7-163PIN160HT-0606

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 163PIN160 logic converter unit maintains continuity for broadband frequency hopping for secure V/UHF communications in high performing military aircraft. This unit allows radios to seamlessly integrate with antennas to maximize reliability and resilience of communications. Chelton's logic converters take frequency information from the radio and matches that to their tunable antennas.

This 163PIN160 logic converter (EDMO# 7163PIN16H) is designed to operating over an extended temperature range.

Features

Maintain continuity for broadband and frequency hopping for V/UHF secure communications
Provides radios with seamless integration with the antenna for reliability
Designed for use with Chelton's line of tunable antennas for optimum performance

Specifications

Weight:

1.0 kg, max.
Dimensions:

67.7 x 159.7 x 77.8 mm
Mounting:

4-hole fixed location
Input Voltage:

16 VDC – 32 VDC
Serial Control Interface:

radio dependent: differential manchester encoded serial bit stream
Connectors:

Type MS3112E 14-19P Type MS3112E 8-33P Type MS3112E 12-10E
Temperature:

-54°C to 71°C (normal) -54°C to 85°C (occasional) -55°C to 95°C (survival)
