M811B Digital Clock | Flight Time Recorder, Elapsed Time Meter

Product Description

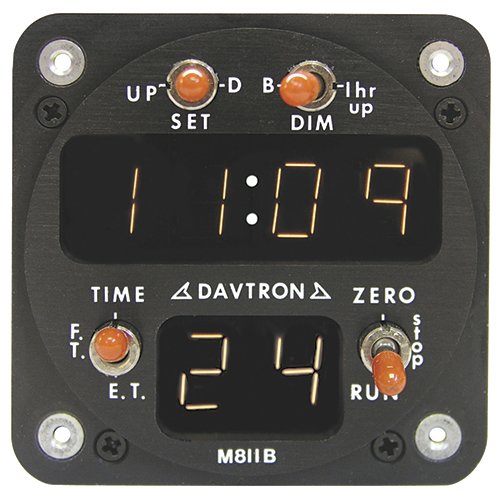

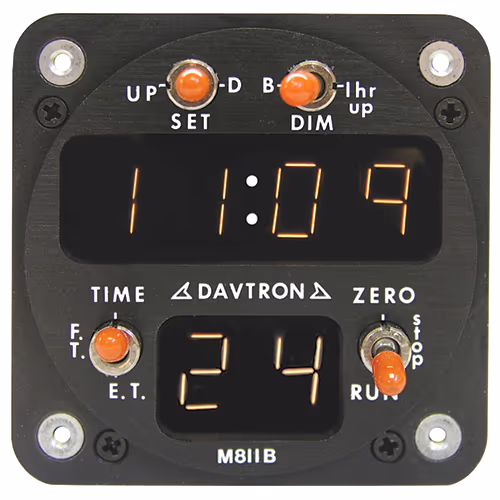

The M811B Digital Clock is a multi-functional chronometer designed to operate under the most stringent operating conditions. It features three independent 6-digit solid state timing circuits: time, flight time, and elapsed time which can be controlled by the pilot. The incandescent display is readable in sunlight. Version 811B-1 has the ability to adjust local time to 12 hour or 24 hour setting.

NOTE: 28V install requires the 811-28 Dropping Resistor (sold separately).

Specifications

• Weight:
  7.5 oz
• Input current:
  0.4 A
• Input voltage:
  14 V
• NVIS option:
  NVIS green A lighting
• Local time:
  12-hour or 24-hour (user selectable)
• Flight time:
  24 hour
• Elapsed time count up:
  24 hour
• Battery type:
  6 V battery with 2-year operating life

Product Codes

• Mfr Part No
  M811B-24
• ECCN
  7a994
• NSN
  6645-01-074-2889
• PMA
  PQ1062NM
• SCHEDULE B CODE
  9104.00.0000
• SIN
  334511
