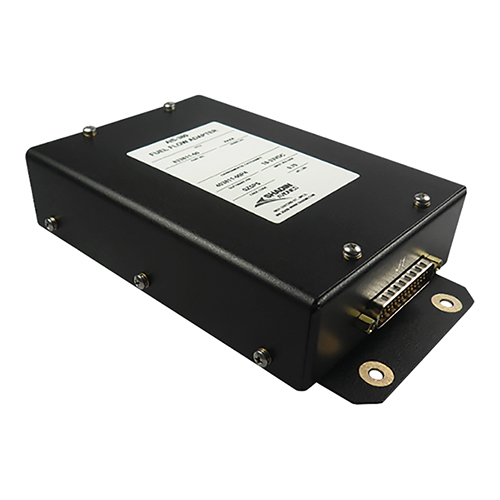

AIS-380 RemoteFlo Fuel Flow Adapter | Digital Input

AIS-380 RemoteFlo Fuel Flow Adapter | Digital Input

Product Description

Shadin’s RemoteFlo is a fuel computer that supplies fuel flow and range ring information to compatible GPS and other aircraft displays or systems eliminating the need for an additional cockpit indicator. Utilizing upgraded and more reliable technology, the RemoteFlo saves cost over a Fuel/Airdata installation and eliminates the need for panel space. The RemoteFlo can interface directly with Digital Frequency fuel flow signals; with a converter for sine wave signals.

Version (EDMO# 833811-01) receives a digital frequency signal from a fuel transducer or equivalent, ARINC 429 air data, and ARINC 429 heading. This data is combined and re-transmitted on an ARINC 429 or RS-232 serial output bus.

*Contact EDMO Customer Service for information on manufacturer supplied install kits.

Features

Features when interfaced with GPS:

Transmission of ARINC 429 or RS-232 air data and heading
Receives digital frequency signal
Specific Range, Efficiency
Fuel to Destination
Fuel Reserve
Endurance
Fuel Flow
Fuel Used
Fuel Remaining

Specifications

Weight:
0.7 lb

Dimensions:
1.57 x 6.9 x 4.24 in

Power Supply Voltage:
28 VDC Nominal

Supply Current:
100 mA at 28 VDC

Operating Temperature:
40° to 70°C

Operating Altitude:
Up to 42,000ft

Storage Temperature:
-55° to 85°C

In-Flight loss of Cooling:
Equipment can run indefinitely with no cooling

Regulatory:
TSO-C44c INCOMPLETE SYSTEM

Software:
DO-178B Level C

Product Codes

Mfr Part No:833811-01
EDMO #:833811-01
Brand:SHADIN LP
Category:Engine and Fuel Flow Management
ECCN:7A994
ECCN:7A994
SCHEDULE B CODE:9026.90.0000
SCHEDULE B CODE:9026.90.0000
TSO:C44c Incomplete System
TSO:C44c Incomplete System

Documents

833811-01 Installation Manual
