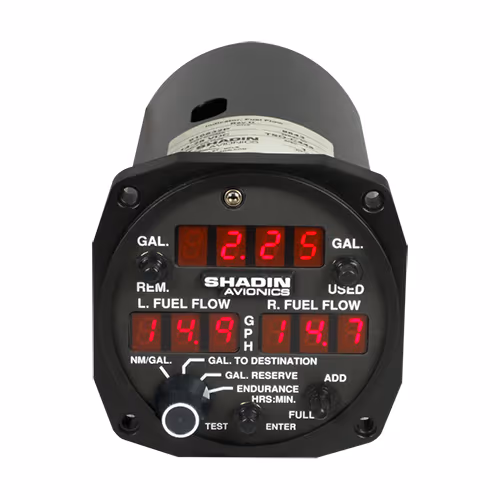

Digiflo-L Digital Fuel Management System | Twin Engine

Product Description

The Digiflo-L is a Digital Fuel Management System designed to provide complete fuel management information under real flight conditions without any manual entry of data (after entry of the initial fuel on board information). Digiflo-L is connected to the engine fuel flow transducer for fuel flow information and to the Loran-C or GPS receiver serial port for navigation data (ground speed, distance and estimated time en route). This system is also capable of transmitting the fuel information to the BendixKing KLN-88, KLN-90, and Garmin GPS navigation receivers, for additional calculations and display of fuel management data.

Specifications

• Weight:
  12 oz
• Dimensions:
  3.125 in. diameter, 6.5 in. deep
• Mounting:
  Instrument panel
• Input voltage:
  14-28VDC
• Input current:
  200mA @ 14VDC to 28VDC
• Maximum usable fuel:
  1,800 gallons
• Operating temperature:
  -30ºC to 50ºC
• Altitude:
  40,000 ft.

Product Codes

• Mfr Part No
  910532P
• ECCN
  7A994
• SCHEDULE B CODE
  8803.30.0010
• TSO
  C44a

Documentation

• 910532P Manual
