High Density HD Contact Insertion/Extraction Tool | for HD-22 & HD-20 Contacts

Product Description

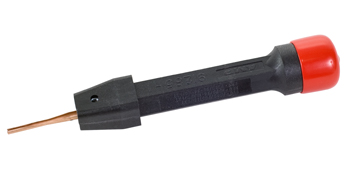

The 91285-1 insertion and extraction tool features a handle for stowing six, color-coded tips as well as a hex wrench. This tool is designed to be used with HD-22 and HD-20 contacts in high density, HD connectors. Each tip is color-coded according to a specific wire size that is to be inserted or extracted, while the hex wrench tightens a setscrew to secure the tip into the handle for use.

Specifications

• Handle Dimensions:
  3.75 x 0.750 in (95.25 x 19.05 mm)

Product Codes

• Mfr Part No
  91285-1
• ECCN
  EAR99
• SCHEDULE B CODE
  8203.20.6060

Documentation

• 91285-1 Datasheet
