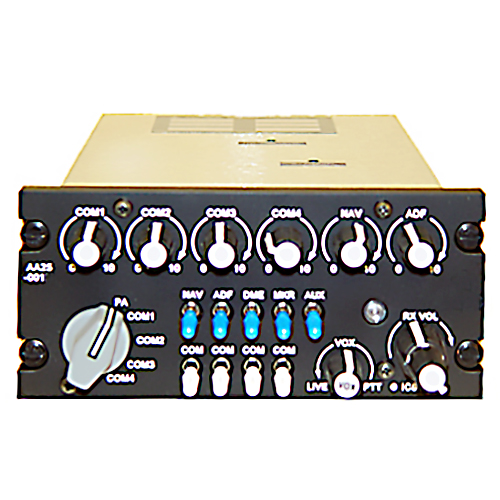

Single User Audio Controller With Indiviual RCV Volume Controls

CANYON AEROCONNECT

Call For Pricing

Out of stock

EDMO # AA25-001

MFR Part # AA25-001

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The AA25-001 single-user Audio controller supports one headset per box. Connection to other users in the system is made through the ICS Tie line. The small size and extensive radio and ICS functions make this unit an excellent choice for multi-station aircraft.

Features

COM1, COM2, COM3, COM4 + PA
NAV, ADF, DME, MKR, & AUX receive switches
COM1 - 4, NAV & ADF level controls
+28 VDC lights and 28 VDC power
High impedance headset and mic
ICS, RX volume and VOX sq. controls

Specifications

Dimensions:

5.88 x 5.75 x 2.63 in Power: 22VCD — 32VDC @ 0.4A max. Input Z: 5kΩ RX and direct lines Tie-Line: Bidirectional ICS Tie Line Z: 2.2 kΩ Microphone: 150Ω carbon equivalent or amplified dynamic or unamplified 5Ω dynamic Headset: 150/600Ω / 250mW or 8 ohm / 200mW TX Positions: Up to 5, or 4 + PA Key Out: Hard Ground TX Annunciator: LED Green Switched Inputs: 5 Nav, 4 Com Direct Inputs: 1 (suitable for alerting) Lighting: 160 mA/28 VDC, 600 mA/5 VDC Modes: LIVE/KEYED/VOX Temperature: -40°C to 70°C (operational) Altitude: 25,000 ft max.
