AD953-7 Air Data Accessories Kit | Boeing 737

data-sf-ec-immutable=

NAV-AIDS LTD

EDMO#: AD953-7

MFR#: AD953-7

Description

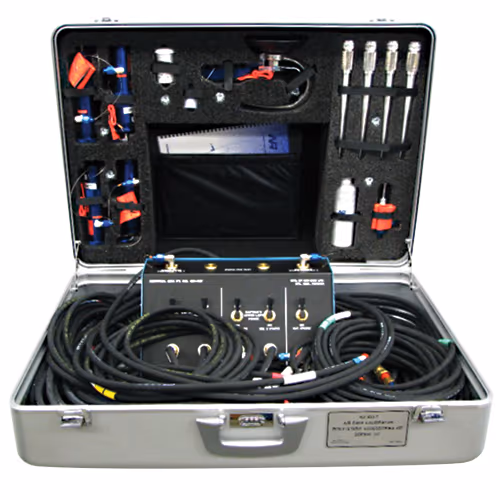

This air data accessories kit contains all the equipment required to test from source the complete pitot and static air data system on the Boeing 737 aircraft, as well as the means of pre-testing all adapters and hoses prior to being fitted to the aircraft. Each adapter includes a "remove before flight" tag for safety and uses AN fittings for reliability. This air data accessories kit is compatible with any air data test set.

Features

  • Compatible with any air data test set
  • Includes "Remove Before Flight" tag for safety
  • Uses AN fittings for added reliability

Includes:

  • Pitot & Dual Static Test Adapter: PSS22300-3-4-4 (4 required)
  • Pre-Test Probe: 953-161 (4 required)
  • Static Test Adapter: 33410LH-125-4 (2 required)
  • Pitot Test Hose Assembly: 953-7-133-101 (1 required)
  • Static Test Hose Assembly: 953-7-162-212 (4 required)
  • Static Test Hose Assembly: 953-7-161-111 (1 required)
  • Static Input Hose Assembly: 953-7-162-211 (1 required)
  • Alternate Static Test Hose Assembly: 953-7-165-105 (1 required)
  • Vacu-Grip Assembly: 421-8971 (1 required)
  • Five Position Selector Box: 421-767 (1 required)
  • Lubricating Fluid: LF5050 (1 required)
  • Seal Kit: SK737 (2 required)
  • Seal: 334-7 (1 required)
  • Manual: 444-953-7

Compatible aircraft:

  • Boeing 737 Classic 100/200/300/400/500

Product Codes

Mfr Part No :

AD953-7

ECCN :

EAR99

SCHEDULE B CODE :

9031.90.0000
