ALT-8000 Pulse Radio Altimeter Flight Line Test Set
Product Description

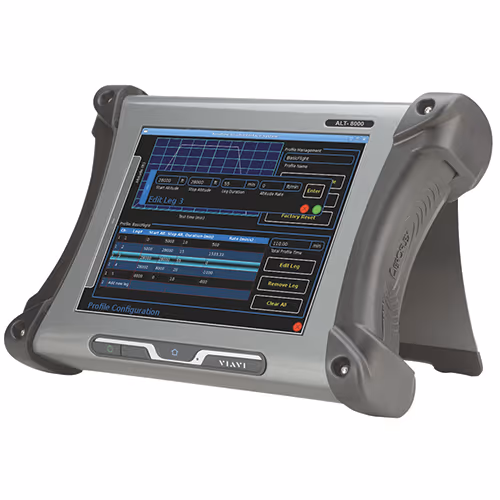

The ALT-8000 is a RF-based, portable Pulse Radio Altimeter Flight Line Test Set that performs tests starting from with the TX/RX antenna through to cockpit indicator. This allows technicians to replicate in-flight conditions and identify faulty components of installed systems. This software upgradable, test set is designed for testing 4.3 GHz FMCW (frequency modulated continuous carrier wave) radio transmitters and pulse altimeters. Connection is simple; it can be directly connected to the transmitter/receiver ports or the user can rely on the TX/RX antenna couplers for even faster testing.
The ALT-8000 has successfully tested the Garmin GRA-55 and GRA-5500 Radio Altimeters to support helicopter, air transport, business jet and general aviation aircraft. Cessna Latitude, HondaJet and Embraer aircraft are some the most recent platforms fitted with the Garmin radio altimeters.
Features
- Terrain Awareness Warning System (TAWS) installations
- Create profiles to control dynamic altitude simulations
- Simulate complete landing approaches with flare outs
- Simulate takeoffs and departures
- Replicate actual airborne conditions
- Tests FMCW radio altimeters including CDF types
- Tests pulse radio altimeters (non-pulse compression types)
- Direct-connect to UUT T/R or to installed system via antenna couplers
- Full RF loop test allows TX, RX, Antenna or Feeder faults to be identified
- Multi-channel operation (via additional test sets)
- Programmable multi-leg climb/descend profiles
- Large touch-screen display with simple user interface
- Remote control interface USB/LAN
- Lightweight and compact about 10 lb (4.5 kg)
- Battery 4 hours plus duration
- Approved for use and is listed in the ATR-72 Maintenance Manual for radio altimeter testing
Specifications
Weight:
15.5 lb (7.03 kg), test set only
Dimensions:
10.6 x 13.9 x 3.4 in (27 x 35.5 x 8.7 cm)
Display:
12 in color LCD, sunlight readable with backlight
Controls:
Touchscreen
Antenna Couples:
TX and RX
Coupler Loss Compensation:
0 to 19.9 dB
Direct TX/RX Connection Ports:
Impedance: 50Ω
SWR: 2.5:1 TX / 3:1 RX
Temperature:
-20°F to 55°C (-4°F to 131°F), operational
-51°C to 71°C (-22°F to 159.8°F), storage
Altitude:
≤ 4,600 meters
