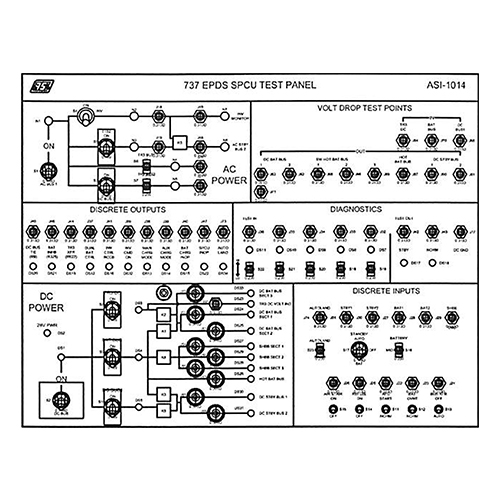

ASI-1014 EPDS SPCU Test Set | 28 VDC, 115 VAC, 400 Hz

Product Description

The ASI-1014 SPCU Test Set works in conjunction with the ASI-1014-1 Load Bank and other standard shop equipment to test the 1151952-XX/ S281A601-3XXX standby Power Control Unit.

The ASI-1014 provides power input, interconnect, monitoring and discretes required during testing. Interconnection to the SPCU under test is accomplished with the attached 6 ft pendant cables. Loading (1.2 Ω/1.5 Ω/126 Ω) is provided by the ASI-1014-1 Load Bank

*The ASI-1014-1 must be purchased with the ASI-1014

Specifications

• Dimensions:
  13 x 17 x 3 in
• Power:
  28 VDC, 115 VAC, 400 Hz

Product Codes

• Mfr Part No
  ASI-1014
• ECCN
  7B994
• SCHEDULE B CODE
  8544.19.0000
