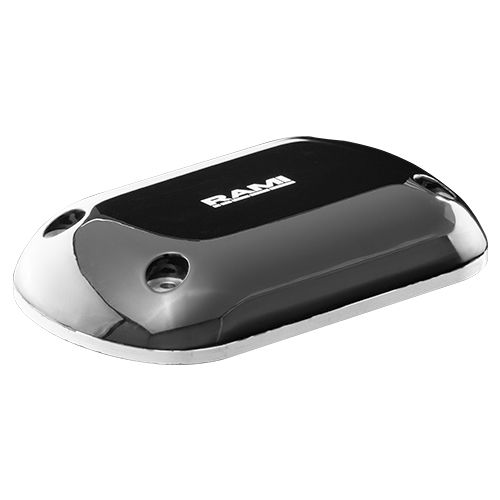

AV-801 Shadow Line WAAS GPS Antenna | 1575 MHz, Gloss Black

AV-801 Shadow Line WAAS GPS Antenna | 1575 MHz, Gloss Black

RAMI

Call For Pricing
Available to order
EDMO # AV-801GB
MFR Part # AV-801GB
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The AV-801 GPS antenna is designed specifically to meet FAA TSO-C190 specifications. Qualification testing includes meeting the requirements of RTCA DO-301 and DO-160G. The mounting footprint matches the standard ARINC found on many general aviation aircraft up to and including business jets.

This AV-801 Shadow Line WAAS GPS antenna (EDMO# AV-801GB) comes with a gloss black finish.

Features

  • 1575.42 ± 10.23 MHz frequency
  • 50 Ω impedance
  • RHCP polarization
  • Hemispherical radiation pattern
  • TNC female connector
  • Gloss black finish
  • Designed specifically to meet FAA TSO-C190 specifications
  • Backed by the RAMI Limited Lifetime Warranty

Specifications

  • Max Weight:
    5.0 oz
  • Application:
    Most aircraft up to and including business jets
  • Frequency:
    1575.42 ± 10.23 MHz
  • VSWR:
    1.5:1 Maximum
  • Polarization:
    RHCP
  • Radiation Pattern:
    Hemispherical
  • Impedance:
    50 Ohms Nominal
  • Gain:
    26.5 – 30.5 dB
  • DC Voltage:
    4.5 to 14.5 VDC
  • DC Current:
    40mA Typ. / 60mA Max
  • Noise Figure:
    2.5 dB
  • Selectivity:
    1315 – 1504.42 MHz -50 dB 1625.42 – 2000 MHz -50 dB
  • Connector:
    TNC Female
  • Finish:
    Gloss Black
  • FAA Approval:
    TSO-C190

Related Products

Product Codes

  • Mfr Part No
    AV-801GB
  • SCHEDULE B CODE
    8529.10.4000
