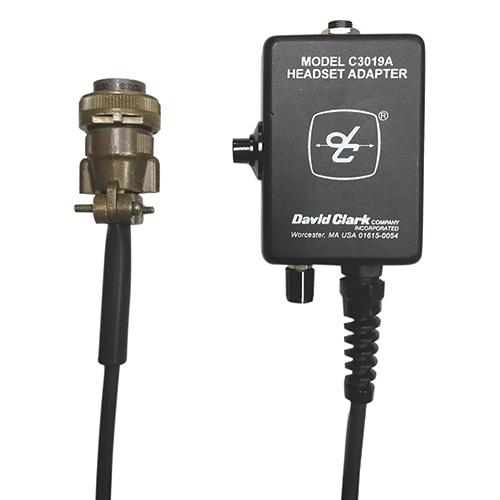

C3019A Belt Station Adapter

DAVID CLARK COMPANY

Call For Pricing

Available to order

EDMO # C3019A

MFR Part # 18667G-42

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Model C3019A utility microphone radio adapter provides in interface between David Clark's 3000 series NR headsets and a mobile radio system. It is compatible with most mobile radios that require carbon equivalent microphones. For radios that do not provide DC bias on the microphone audio line, a switch battery voltage of 13.8 VDC is required at the connector. The sturdy belt clip provides users with freedom of movement while not encumbering access to the PTT switch.

Features

Push-to-Talk switch with optional off-hook revert function of radios scan feature
Seven-pin screw on MS connector prevents accidental disconnect
15-foot, rugged RFI shield coiled cord
Detented listen level control
Sturdy belt clip

Specifications

Dimensions:

3-1/4 x 2-1/4 in (RFI housing)
Cord Length:

Coiled (15 ft, extended)
Headset Connector:

1/4-in phone jack mates with 1/4-in plug on 3000 series headsets
