CI 196 VHF Communications Blade Antenna | 118–137 MHz, 50 Ω, BNC Female Connector

Product Description

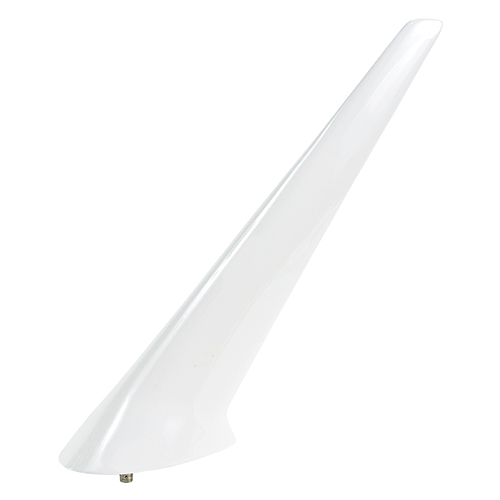

The CI 196 antenna (EDMO# CI-196) is a four-internal-hole-mount style VHF communications blade antenna with an offset BNC port. This antenna is equivalent to the CI 119 VHF communications antenna except for the mounting hole pattern and is suitable for either top or bottom mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and helicopters.

Specifications

• Weight:
  1.25 lbs
• Height:
  13 in
• Frequency:
  118–137 MHz
• VSWR:
  2.9:1 Max
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance:
  50 Ω
• Power:
  25 W
• Material:
  Valox 420
• Finish:
  Glossy White
• Connector:
  Offset BNC Female
• Temperature:
  -55ºC to 85ºC
• Altitude:
  50,000 ft
• FAA TSO:
  C37d, C38d
• RTCA Environmental:
  DO-160D
• Gasket:
  B19604

Product Codes

• Mfr Part No
  CI 196
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C37d,C38d

Documentation

• CI 196 Data Sheet
• CI 196 Product Drawing
