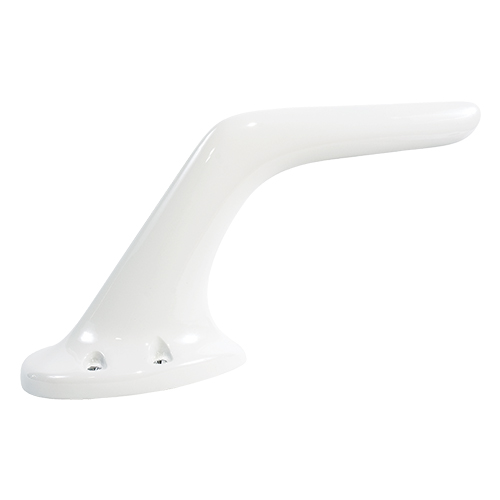

CI 211-16 VHF Communications Blade Antenna | 118–154 MHz, 50 Ω, 30 Watts, BNC Female Connector, 6 Hole Mount

Product Description

The CI 211 series antenna is a four-through-hole- and two internal-hole-mount style VHF communication bent blade antenna with a BNC port. This robust antenna is suitable for either top or bottom mounting on heavy fixed-wing single-engine and multi-engine aircraft, helicopters, and business jets.

This CI 211 series antenna (EDMO# CI-211-16) is a six-hole mounted VHF communication bent blade antenna with an extended 118–154 MHz frequency range and no leading edge protection.

Specifications

• Weight:
  1.6 lb
• Height:
  8.25 in
• Frequency:
  118–154 MHz
• VSWR:
  2.9:1
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance (RF):
  50Ω
• Power (RF):
  30 W
• Material:
  High Density Polyurethane
• Finish:
  Glossy White
• Connector:
  BNC Female
• Temperature:
  -55ºC to 85ºC
• Mounting Configuration:
  6 Hole
• FAA TSO:
  C37d, C38d
• RTCA Environmental:
  DO-160D
• Gasket:
  C21104 Cork Neoprene

Product Codes

• Mfr Part No
  CI 211-16
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C37d,C38d

Documentation

• CI 211 Data Sheet
• CI 211 Product Drawing
