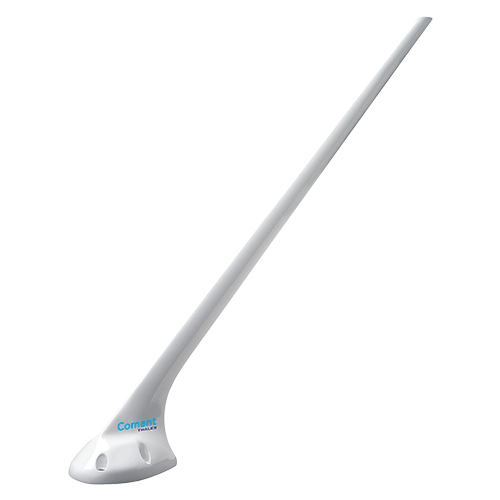

CI 248-5 VHF Communications Whip Antenna | 118–137MHz, 50Ω, BNC Female Connector

Product Description

The CI 248-5 antenna (EDMO# CI-248-5) is a four-through-hole-mount style VHF communication whip antenna with a BNC port. This antenna is equipped with a built-in harmonic suppression filter that allows for installation near GPS antennas without co-site interference. It is suitable for top mounting with light fixed-wing single-engine aircraft and helicopters.

Specifications

• Weight:
  0.52 lb
• Height:
  17.5 in
• Frequency:
  118–137 MHz
• VSWR:
  2.5:1
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance (RF):
  50 Ω
• Power (RF):
  25 W
• Harmonic Rejection:
  80 dB
• Material:
  Molded Glass Filled Nylon
• Finish:
  Glossy White
• Connector:
  BNC Female
• Temperature:
  -55ºC to 85ºC
• Altitude:
  50,000 ft
• FAA TSO:
  C37d, C38d
• RTCA Environmental:
  DO-160D
• Gasket:
  B24809 Cork Neoprene

Product Codes

• Mfr Part No
  CI 248-5
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C37d,C38d

Documentation

• CI 248-5 Data Sheet
• CI 248-5 Product Drawing
