CI 2480-200 ComDat VHF/GPS Antenna | 118–137 MHz (VHF), 1575.42 ± 3 MHz (GPS), 26.5 dB Gain, 50 Ω, BNC & TNC Connectors

Product Description

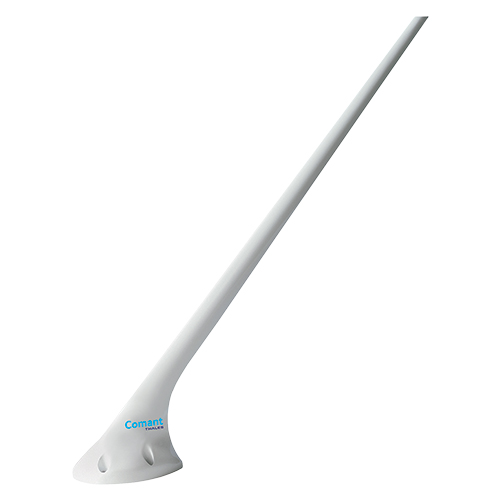

The CI 2480-200 ComDat antenna (EDMO# CI-2480200) is a four-through-hole-mount style VHF/GPS non-WAAS whip antenna with BNC and TNC ports. This antenna covers both VHF communication and GPS frequencies and is designed to be used with 26.5 dB gain GPS panel mount systems. It is GPS C144 certified for class 1 LNAV approaches (lateral navigation only) and is suitable for top mounting on both light and heavy fixed-wing single-engine aircraft and helicopters.

Specifications

• Weight:
  0.6 lb
• Connectors:
  VHF: BNC GPS: TNC
• FAA TSO:
  C37d, C38d, C144
• RTCA Environmental:
  DO-160D
• VHF SPECIFICATIONS:
• Frequency:
  118–137 MHz
• VSWR:
  2.5:1
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance:
  50 Ω
• Power Rating:
  50 W
• GPS PREAMPLIFIER:
• Frequency:
  1575.42 ± 3 MHz
• Polarization:
  RHCP
• Radiation Pattern:
  Hemispherical
• Impedance:
  50 Ω
• Gain:
  26.5 dB
• DC Voltage:
  5 VDC
• DC Current:
  50 mA
• Noise:
  3.8 dB

Product Codes

• Mfr Part No
  CI 2480-200
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C37d,C38d,C144 INCOMPLETE SYSTEM

Documentation

• CI 2480-200 Data Sheet
• CI 2480-200 Product Drawing
