CI 2590-200 ComDat VHF/GPS WAAS Antenna | 118–137 MHz (VHF), 1575.42 ± 10.23 MHz (GPS), 26.5–32.5 dB Gain, 50 Ω, BNC & TNC Connectors

Product Description

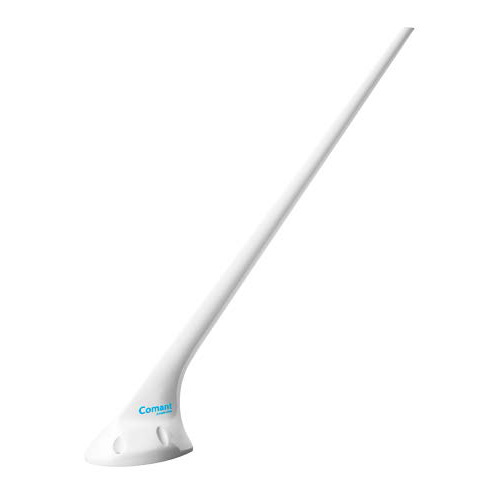

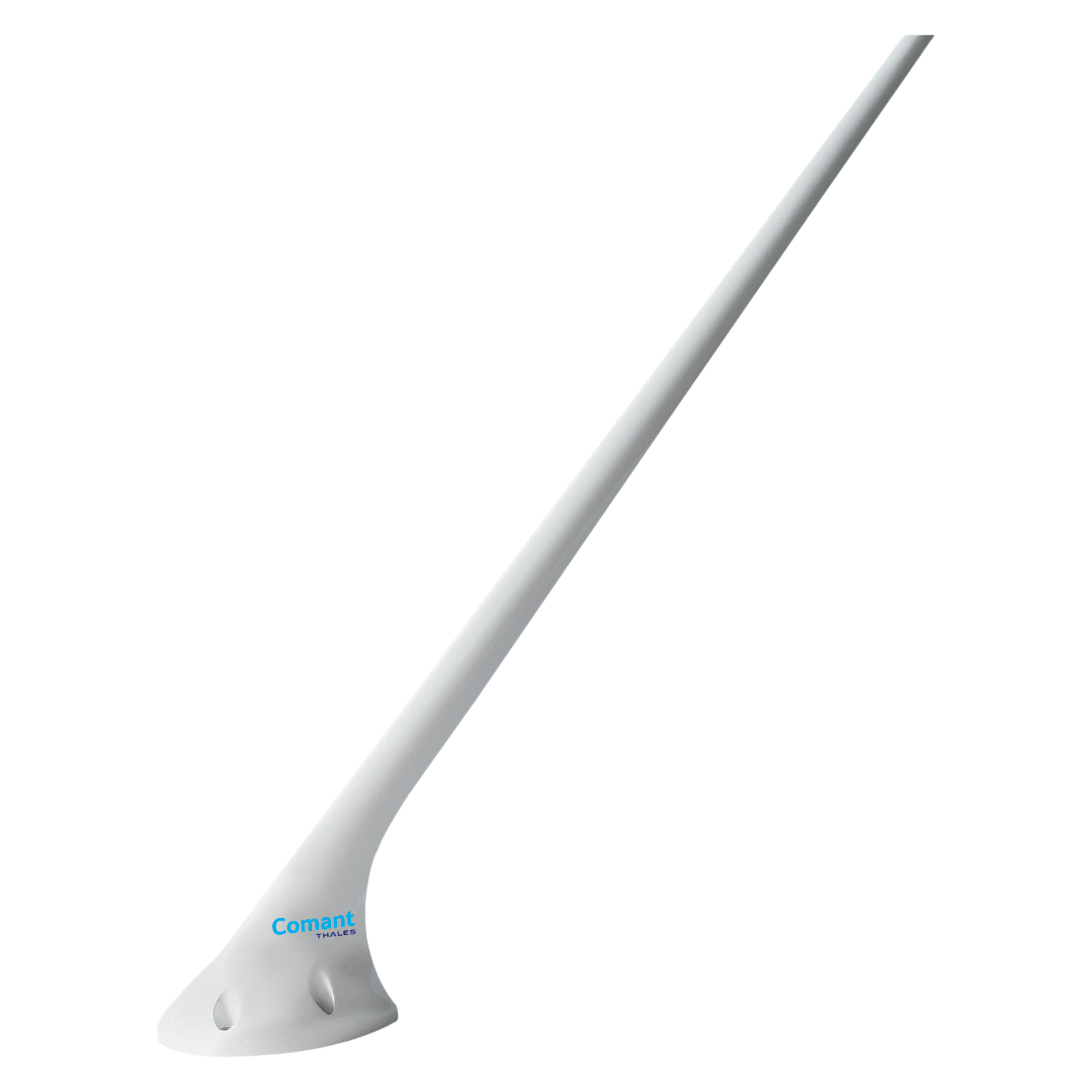

The CI 2590-200 ComDat antenna (EDMO# CI-2590200) is a four-through-hole-mount style VHF/GPS WAAS whip antenna with BNC and TNC ports. This antenna covers both VHF communication and GPS frequencies and is GPS C190 certified for class 3 LPV precision approaches. It is designed to be used with 27 dB gain GPS panel mount systems and is suitable for top mounting with light fixed-wing single-engine aircraft.

Specifications

• Weight:
  0.75 lb
• Connectors:
  VHF: BNC GPS: TNC
• FAA TSO:
  C169, C190
• RTCA Environmental:
  DO-160E
• VHF SPECIFICATIONS:
• Frequency:
  118–137 MHz
• VSWR:
  2.5:1
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance:
  50 Ω
• Power Rating:
  50 W
• GPS PREAMPLIFIER:
• Frequency:
  1575.42 ± 10.23 MHz
• VSWR:
  1.5:1
• Polarization:
  RHCP
• Radiation Pattern:
  Hemispherical
• Impedance:
  50 Ω
• Gain:
  26.5–32.5 dB
• DC Voltage:
  4–24 VDC
• DC Current:
  40 mA (Typical), 60 mA (Max)
• Noise:
  2.5 dB

Product Codes

• Mfr Part No
  CI-2590-200
• ECCN
  7A994
• SCHEDULE B CODE
  8529104000
