CS90/TV90E CableScout Time Domain Reflectometer (TDR)

TEMPO COMMUNICATIONS

Call For Pricing
Available to order
EDMO # CS90B
MFR Part # CS90B
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

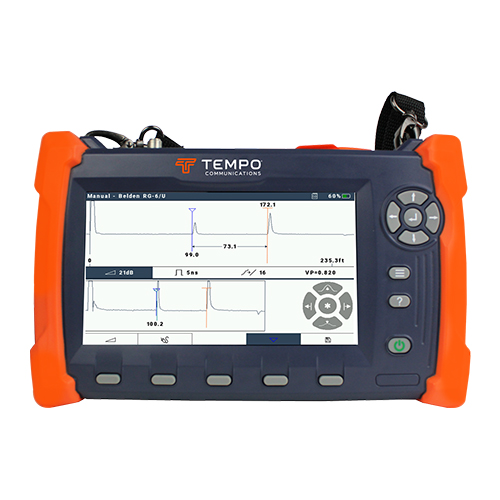

The CableScout® 90 (CS90) offers a balanced mix of automation and manual testing that enables technicians to do  their jobs right the first time. The CS90 delivers the latest TDR technology in a small, lightweight and rugged design  to provide unrivaled ease-of-use and coaxial cable testing performance as well as telephone or Ethernet twisted pairs. With the CS90, technicians will spend less time operating the TDR and more time repairing faults. Simply select the cable type to be tested and the CS90 does the rest. Pulse width, VP, gain, and vertical position are automatically selected and adjusted as you scan the cable. Finding the fault could not be faster, just move the cursor to the fault and use the one-button zoom function to pinpoint its location.

The CS90 employs optimized pulsing and sampling, coupled with advanced filtering and  signal-processing techniques you always have the cleanest possible waveform for the easiest event identification. The FastFind™ automatic fault locator function can quickly adjust the overview trace to the last fault on the cable speeding documentation of faults in real-time.

Features

  • Base Kit Includes:
  • CS90 “CableScout®”
  • DC charger (12 V socket)
  • AC PSU (universal)
  • 2 meter COAX patch lead
  • F type barrel connectors
  • Shoulder strap

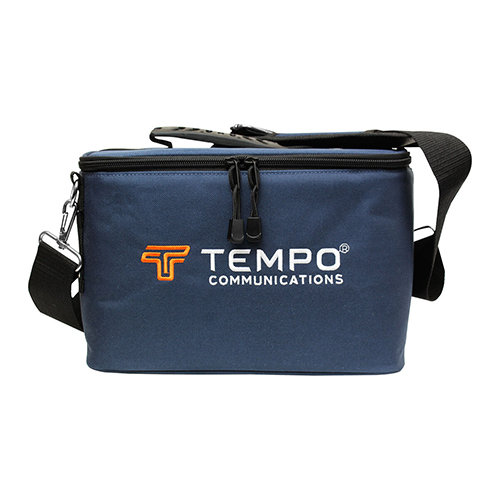

  • Weather resistant shoulder bag
  • SD card
  • Features:
  • Large, Color, HiRes Backlit Display (Readable Outdoors in Bright Conditions)
  • Splash, Dust, and Shock-Resistant Packaging
  • Zero Dead Zone
  • 2, 5 and 25 ns pulse widths standard
  • FastFind™ whole cable overview
  • Protected 75 Ω F Connector
  • Intermittent Fault Location
  • Context-Sensitive Help Available for All Functions
  • Small, Portable, Lightweight Package
  • Internal Cable Types for Fast, Accurate Testing
  • Rechargeable Lithium Ion Battery for 8+ hrs. of use
  • Benefits:
  • Locate Damage in Drops & Bad Passive Devices
  • Super sensitive to find Impedance Mismatches (e.g. corrosion, water or cable type changes)
  • 2 ns pulse width for precision fault location at higher frequency
  • Determine Length of Cable
  • Automatic end-of-cable detection speeds up testing
  • High-bandwidth low noise amplifiers make subtle faults more visible
  • Save virtually unlimited traces to SD-Card for later analysis using Tempo Report Writer software
  • Perform software updates in the field via SD Card or USB drive
  • Customize cable libraries and share via SD-Card or USB drive
  • Built in context sensitive help via "?" button
  • 13 languages

Specifications

  • Weight:
    900 g
  • Dimensions:
    262 x 162 x 55 mm
  • Output Pulse Test Signal:
    Pulse:
  • Output Pulse Type:
    1/2 Sine Wave
  • Output Pulse Width:
    2 ns, 5 ns, 25 ns
  • Impedance:
    75 Ω
  • Voltage:
    > 4 V Peak
  • Protection:
    ± 400 VDC
  • Filtering:
    1, 2, 4, 8, 16, 32
  • Operating Temperature:
    -20ºC to 50ºC (0ºC to 30ºC charging)
  • Storage Temperature:
    -20ºC to 60ºC
  • Horizontal Resolution:
    204 ps (approx. 3 in/75 mm)
  • Maximum Distance:
    14 kft (4.3 km) @ Vp = 0.93
  • Display Resolution:
    800 x 480
  • Display Size:
    7 in (180 mm) diagonal
  • Backlight Brightness:
    1000nits
  • Test Result Storage:
    SD card or USB drive
  • Battery Type:
    Li-Ion polymer
  • Battery Capacity:
    30 Wh; sufficient for >8 hr use with typical backlight
  • Battery Life:
    Battery Management System optimizes charging and lifetime
