BNC Male to 4mm Binding Post Adapter | 50 Ω, 3 A, 500 Vrms

BNC Male to 4mm Binding Post Adapter | 50 Ω, 3 A, 500 Vrms

CAL TEST ELECTRONICS

Call For Pricing
Available to order
EDMO # CT-2410
MFR Part # CT2410
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

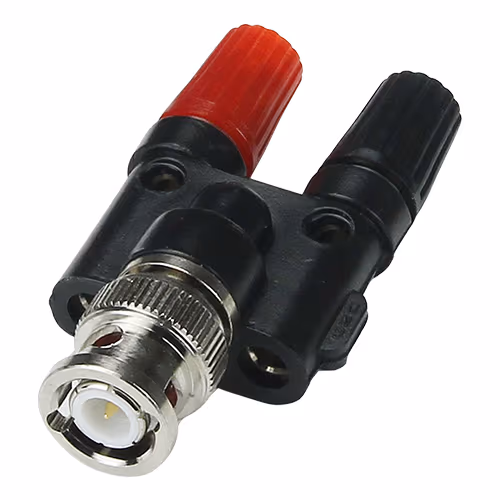

This BNC male to 4mm binding post adapter (EDMO# CT-2410) adapts BNC female cables, components or equipment to double binding posts. Connections can be made to the binding posts by spade lugs, banana plugs or wire leads. This adapter can also be used to adapt a BNC female connector on an instrument to accept standard banana plugs.

Features

  • No product features currently available.

Specifications

  • Dimensions:
    2.3 x 1.1 in (59.5 x 27.8 mm)
  • Voltage Max:
    500 Vrms
  • Current Max:
    3 A
  • Impedance:
    50 Ω
  • Resistance:
    < 1 mΩ
  • Temperature:
    -20ºC to 80ºC
  • RoHS (2011/65/EU):
    Compliant

Product Codes

  • Mfr Part No
    CT2410
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.69.4010
