Wireless Bridle Cable Tension Meter | 30lb

Sprague Instruments

Call For Pricing

Available to order

EDMO # CTRBCWL30

MFR Part # 1445-01

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

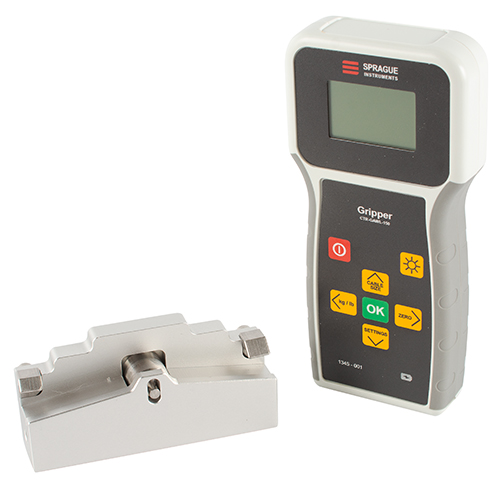

The Gripper Digital Cable Tension Meter provides technicians a simple method for maintaining correct cable tension in autopilot flight control systems and is small enough to fit into tight areas. The small sensor head and separate handheld display box make it easier to view the measurement readings while adjusting the cable tension. The informative display box screen shows the temperature, cable size, and battery strength. This tensiometer is simple to use and has no extra parts. The unit comes calibrated, certified, and ready to use out of the box. Just turn on the unit and select the correct cable size. The Gripper has been designed so local calibration shops can certify their tools using the calibration information that is specified in user manuals.

This Gripper tensiometer (EDMO# CTRBCWL30) has a 10 — 30 lb range for testing autopilot bridle cables and supports 1/16, 3/32, and 1/8 inch cable sizes

Features

Selectable units of measurement 0C and 0F
Compact sensor head fits into tight
spaces
Display screen shows temperature,
cable size, and battery strength
Works for a range up to 10 meters
±3% of Full scale Tolerance
10 to 30 pound range
Back light ON/OFF display option
Connects wirelessly via Bluetooth
Carrying case included

Specifications

Scale Range:

10 lb — 30 lb Scale Resolution: 1 lb Scale Tolerance: ±3% of Full scale Unit of Measurement: Metric – Kg, 0°C U.S. Standard – lb , 0°F Supported Cables Sizes: 1/16, 3/32, 1/8 in Ambient Temperature: Selectable oC and oF Operating Temperature Range: 14°F to 100°F (-10°C to 40°C) Storage Temperature: -4°F to 122°F (-20°C to 50°C) Operating Modes: Measurement / Calibration / Firmware Update Humidity: 5 to 95 % Communication: BLE 4.2 (Between Display Unit & Sensor Unit) Wireless Range: 10 meters Display Unit: Weight: 160 gm (approx.) Housing ABS Plastic Dimension: 164 x 80 x 29 mm Display: 160 x 128 Dot Matrix LCD Back light ON/OFF option Charging: 5V DC / Charge Status Indicator 1,500mAH – Li Po Rechargeable Battery ~10,000 Readings on a single charge with the backlight OFF ~3,000 Readings on a single charge with the backlight ON Sleep mode: Activated after 5 Mins of inactivity Sensor Voltage: Weight: 240 gm (approx.) Dimension: 2.5 x 1.25 x 1.5 in Charging Voltage: 5VDC / Charge Status Indicator Power: 500mAH – Li Po Rechargeable Battery ~4,000 Readings with a Single Charge Sleep mode after 5 mins idle time Housing: 6061 Aluminum
