Gripper Wireless Control and Bridle Cable Tension Meter | 30lb & 150lb
Product Description

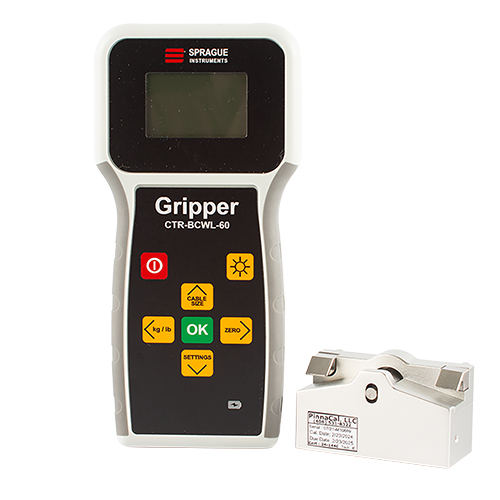

The Gripper Digital Cable Tension Meter provides technicians a simple method for maintaining correct cable tension in autopilot flight control systems and is small enough to fit into tight areas. The small sensor head and separate handheld display box make it easier to view the measurement readings while adjusting the cable tension. The informative display box screen shows the temperature, cable size, and battery strength. This tensiometer is simple to use and has no extra parts. The unit comes calibrated, certified, and ready to use out of the box. Just turn on the unit and select the correct cable size. The Gripper has been designed so local calibration shops can certify their tools using the calibration information that is specified in user manuals.
This Gripper tensiometer kit (EDMO# CTRDHWl150) includes the 10 — 150 lb range sensor unit and the 10 — 30 lb sensor unit for testing autopilot control cables and bridle cables on general aviation aircraft. Also this kit supports control cable sizes 1/16, 3/32, 1/8, 5/32, 3/16 inches and bridle cable sizes 1/16, 3/32, 1/8 inches.
Features
- Selectable units of measurement ºC and ºF
- Compact sensor head fits into tight spaces
- Display screen shows temperature, cable size, and battery strength
- Works for a range up to 10 meters
- ±2% of Full scale Tolerance
- Comes with 10 to 30 pound range and 10 to 150 pound range sensors
- Back light ON/OFF display option
- Connects wirelessly via Bluetooth
- Carrying case included
Specifications
Scale Range:
10 lb — 30 lb
10 lb — 150 lb
Scale Resolution:
1 lb
Scale Tolerance:
±3% of Full scale
Unit of Measurement:
Metric – Kg, 0°C
U.S. Standard – lb , 0°F
Supported Cables Sizes:
1/16, 3/32, 1/8 in; bridal cables
1/16, 3/32, 1/8, 5/32, 3/16 in; control cables
Ambient Temperature:
Selectable °C and °F
Operating Temperature Range:
14°F to 100°F (-10°C to 40°C)
Storage Temperature:
-4°F to 122°F (-20°C to 50°C)
Operating Modes:
Measurement / Calibration / Firmware Update
Humidity:
5 to 95 %
Communication:
BLE 4.2 (Between Display Unit & Sensor Unit)
Wireless Range:
10 meters
DISPLAY UNIT:
Weight:
160 g (approx.)
Housing:
ABS Plastic
Dimension:
164 x 80 x 29 mm
Display:
160 x 128 Dot Matrix LCD
Back light:
ON/OFF option
Charging:
5V DC / Charge Status Indicator
1,500mAH – Li Po Rechargeable Battery
~10,000 Readings on a single charge with the backlight OFF
~3,000 Readings on a single charge with the backlight ON
Sleep mode:
Activated after 5 Mins of inactivity
SENSOR VOLTAGE:
Weight:
240 gm (approx.)
Dimension:
2.5 x 1.25 x 1.5 in
Charging Voltage:
5VDC / Charge Status Indicator
Power:
500mAH – Li Po Rechargeable Battery
~4,000 Readings with a Single Charge
Sleep mode after 5 mins idle time
Housing:
6061 Aluminum
Product Codes
- Mfr Part No:CTR-DHWL-150
- EDMO #:CTRDHWL150
- Brand:SPRAGUE INSTRUMENTS
- Category:Wire & Cable Testers
- SCHEDULE B CODE:9024.80.0000
