Wireless Control Cable Tension Meter | 150lb

Product Description

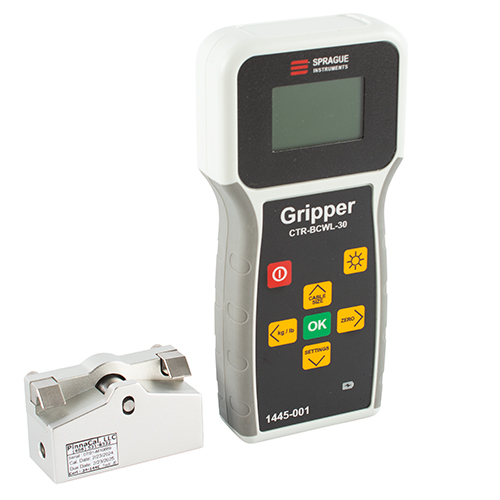

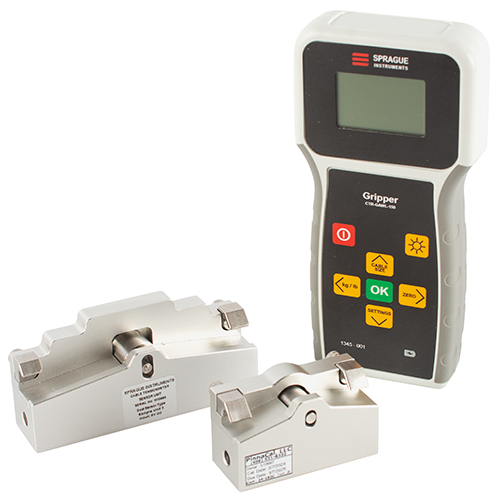

The Gripper Digital Cable Tension Meter provides technicians a simple method for maintaining correct cable tension in autopilot flight control systems and is small enough to fit into tight areas. The small sensor head and separate handheld display box make it easier to view the measurement readings while adjusting the cable tension. The informative display box screen shows the temperature, cable size, and battery strength. This tensiometer is simple to use and has no extra parts. The unit comes calibrated, certified, and ready to use out of the box. Just turn on the unit and select the correct cable size. The Gripper has been designed so local calibration shops can certify their tools using the calibration information that is specified in user manuals.

This Gripper tensiometer (EDMO# CTRGAWL150) has a 10 – 150 lb range for testing autopilot control cables on general aviation aircraft and supports 1/16, 3/32, 1/8, 5/32, 3/16 inch cable sizes.

Specifications

• Weight:
  240 g (approx.)
• Dimensions:
  105 x 40 x 27 mm
• Scale Range:
  10 – 150 lb Scale Resolution: 1 lb Scale Tolerance: ±2% of Full scale Unit of Measurement: Metric – Kg, °C U.S. Standard – lb , F Supported Cables Sizes: 1/16, 3/32, 1/8, 5/32, 3/16 in Ambient Temperature: Selectable °C and °F Operating Temp Range: 14°F to 100°F (-10°C to 40°C) Storage Temperature: -4°F to 122°F (-20°C to 50°C) Operating Modes: Measurement / Calibration / Firmware Update Humidity: 5 to 95 % Communication: BLE 4.2 (Between Display Unit & Sensor Unit) Wireless Range: 10 meters Display: 160 x 128 Dot Matrix LCD Back light ON/OFF option Charging: 5V DC / Charge Status Indicator 1,500mAH – Li Po Rechargeable Battery ~10,000 Readings on a single charge with backlight OFF ~3,000 Readings on a single charge with the backlight ON Sleep mode: Activated after 5 Mins of inactivity Dimension: 164 x 80 x 29 mm Weight: 160 gm (approx.) Housing: ABS Plastic Charging Voltage: 5VDC / Charge Status Indicator Power: 500mAH – Li Po Rechargeable Battery ~4,000 Readings on a Single Charge Sleep mode after 5 mins idle time Housing: 6061 Aluminum

Product Codes

• Mfr Part No
  1345-001
• SCHEDULE B CODE
  9024.80.0000
