CI-205-3 VOR/LOC/GS Antenna | 108–118 MHz, 329–335 MHz

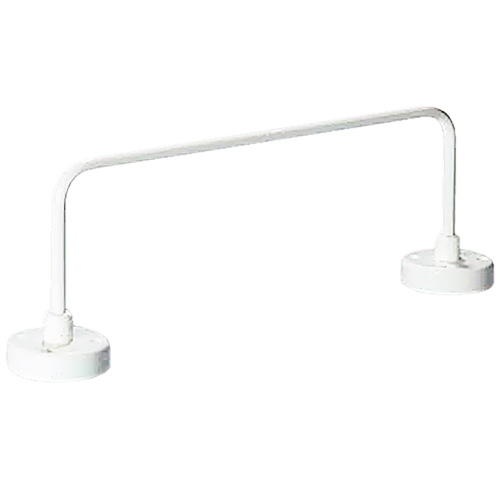

CI-205-3 single antenna

COMANT INDUSTRIES

EDMO#: D20543

MFR#: D20543

Description

The CI 205-3 VOR/LOC/GS is designed to be mounted on the aircraft vertical stabilizer or helicopter tail boom. It features low a weight/drag, tabular structure to minimize helicopter rotor ""down wash"" forces. Also, it contains wideband/high efficiency electrical performance and DC grounding which provides lightning protection.

This antenna is ideal for single and twin engine aircraft. It is also approved for light helicopter installations.

This part (EDMO# D20543) contains one antenna.

Features

No product features currently available.

Specifications

Weight:
1.75 lb, maximum

Frequency:
108 - 118 MHz (VOR/LOC)
329 - 335 MHz (GS)

VSWR:
108 - 118 MHz: 5.0:1, maximum
329 - 335 MHz: 5.0:1, maximum

Polarization:
Horizontal

Radiation Pattern:
Omni Directional

Impedance RF:
50Ω

Material:
Delrin mounts/Aluminum "towel bar"

Finish:
Polyurethane Enamel

Connector:
BNC

Temperature:
-55°C to 85°C

Altitude:
50,000 ft

Airspeed:
300 knots TAS @ 25,000 ft

Federal Specifications:
FAA TSO C34e, C36e, C40c
RTCA Environment DO-160D

Product Codes

Mfr Part No :

D20543

ECCN :

7A994

SCHEDULE B CODE :

8526.10.6000

TSO :

C34c, C36c, C40a
