DLRO10HD 10 Amp Digital Low Resistance Ohmmeter

10 AMP DIGITAL LOW RESISTANCE OHMMETER

MEGGER

Call For Pricing
Available to order
EDMO # DLRO10HD
MFR Part # DLRO10HD
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

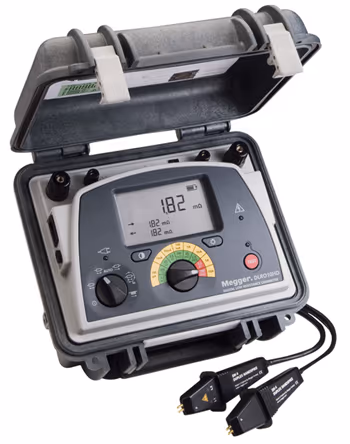

The DLRO10HD digital low resistance ohmmeter is designed for measure low resistant values in applications ranging from railways and aircraft. This ohmmeter features an internal rechargeable battery to allow operation in a laboratory, workshop,  or in the field. It can also operation from a mains power supply, even if the battery has run out.

Features

  • Rugged case well suited to transportation with shoulder strap and lead set pouch„
  • Removable lid facilitates easy test lead connection„
  • Operational ingress protection is IP 54 (battery power only) ensuring protection from the elements„
  • 7 Ah lead acid battery provides extended operation and can be charged whilst operating from mains power„
  • Rotary mode switch with bidirectional (current reversal with averaging cancels thermal EMFs), unidirectional, automatic, continuous and inductive modes„
  • Large, clear LCD display with backlight and contrast adjustment„
  • Auto power off function conserves battery

Specifications

  • Weight:
    6.7 kg
  • Case Dimensions:
    315 x 285 x 181 mm
  • Display:
    Main display 5 digit plus 2x5 digit secondary display
  • Temperature:
    -10°C to 50°C, operational -25°C to 60°C, storage
  • Battery Type:
    6V, 7Ah sealed lead acid
  • Voltage Input Range:
    100V – 240V, 50/60Hz, 90VA
  • Charge Time:
    8 hours
  • Backlight:
    LED backlight
  • Auto Power Off:
    300 seconds
  • Mode Selection:
    Left rotary switch
  • Range Switch:
    Right rotary switch
  • IP Rating:
    IP65 with lid closed IP54 during battery operation
  • Safety:
    IEC61010-1, CAT 300V when used with terminal cover
  • EMC:
    IEC61326-1
