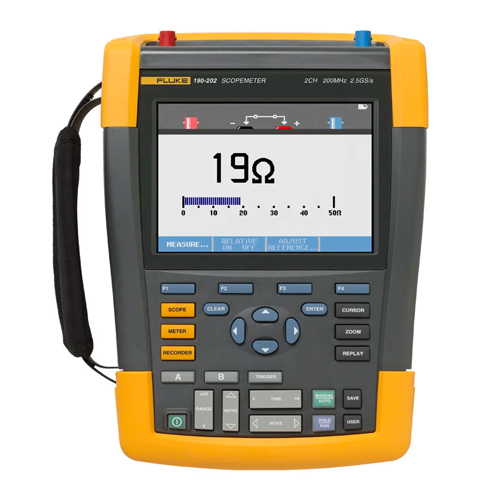

Fluke 190-202-III/S Color ScopeMeter | 200 MHz, 2 Channels with DMM/EXT input, SCC-293 kit Included
FLUKE
EDMO#: FLUKE-190
MFR#: FLUKE-190-202-III-S
Description
The Fluke 190 series III ScopeMeter is a portable oscilloscope that offers technicians a precision troubleshooting tool they can take with them to any job site. This category III/IV rated test tool features fast sample rates and deep memory per channel allowing for a very high capture rate for accurate measurements. Available in either a 2- or 4-channel version, the Fluke 190 features TrendPlot™ Paperless Recorder, ScopeRecord™ mode, Connect-and-view™ triggering, and a unique 100-screen Replay function to help quickly diagnose issues and minimize repair cost and downtime. This tool is simple to use when diagnosing difficult concepts like complex waveforms, induced noise, intermittent events and signal fluctuations or drift.
Features
This Fluke 190 Includes (EDMO# FLUKE-190):
- ScopeMeter 190-102-III
- BC190/830 power adapter
- Power cord set
- BP290 Li-ion battery pack
- TL175 test lead set
- VPS421 probe (2x)
- Hand strap
- Hanging strap
- USB-cable
- CXT293 carrying case
- DWA-131 WiFi dongle
- FlukeView Activation instructions (paper)
- Printed instructions
Features:
- Up to four independent isolated inputs, up to 1,000V
- Up to 5 GS/s real time sampling (model depending)
- Deep Memory: 10,000 points per trace waveform capture (scope model)
- CAT III 1,000V/CAT IV 600V safety rated instruments for industrial environments
- Up to seven hours of battery operation using BP291
- Easy-to-view large, bright color display
- Easy-to-store and view historical data and transfer to a PC over USB or WiFi
- Convenient battery access door for quick battery swaps
- IP51 rating, dust and drip-proof protection
- Connect-and-view triggering for intelligent, automatic triggering on fast, slow and complex signals
- Frequency spectrum using FFT-analysis
- Automatic capture and REPLAY of 100 screens
- ScopeRecord mode gives 30,000 points per input channel
- Trend Plot Paperless record mode with deep memory for long-term automatic measurements
- 5,000 count DMM in includes in the 2-channel models
Specifications
Weight:
4.6 lb (2.1 kg)
Dimensions:
10.5 x 7.6 x 2.8 in (265 x 192 x 70 mm)
Display Resolution:
1120 x 765 px
Battery Power:
Re-chargeable Li-Ion battery (included). Battery swappable through easily accessible battery door at the rear of the instrument
Number of Channels:
2
Bandwidth:
200 MHz
Rise Time:
1.7 ns
Number of Scope Inputs:
2 channels plus external trigger
Channel Architecture:
all inputs insulated from each other and from ground
Input Coupling:
AC or DC, with ground level indicator
Input Sensitivity:
with 10:1 probe, 20 mV to 1,000V/div
with 100:1 probe, 200 mV to 10kV/div
Direct (1:1), 2 mV to 100V/div
Bandwidth Limiter:
20 MHz and 10 kHz
Polarity:
normal, inverted, variable
Input Voltage:
CAT III 1000 V/CAT IV 600 V rated
Vertical Resolution:
8 bit
Accuracy at 4 sec. to 10 µs/div:
5 mV/div to 100 V/div, ±(1.5 % + 6 counts)
2 mV/div, ±(1.5 % + 10 counts)
Input Impedance:
1 MΩ (±1 %) // 15 pF (±2.25 pF)
Maximum Sample Rate:
2.5 GS/s (each channel)
Record Length:
up to 10,000 samples per channel
Time Base Range:
2 ns/div to 4 s/div
Timing Accuracy:
±(0.01% of reading + 1 pixel)
Glitch Capture:
8 ns (10 µs/div to 2 min/div)
Display Resolution:
133 x 90 mm, full-color & high brightness
Display Modes:
any combination of channels; average on/off, replay
Visible Screen Width:
12 divisions horizontal in scope mode
Digital Persistence Mode:
off, short, medium, long, infinite and envelope mode
Acquisition Modes:
Normal, Averaged, Auto, Single Shot, ScopeRecord™ roll, glitch capture,
waveform compare with automatic “Pass/Fail testing”; Replay
Compliance:
EN61010-1, Pollution Degree 2;
IEC 61010-2-030: CAT IV 600 V / CAT III 1000 V
Included Accessories:
ScopeMeter 190-102-III
BC190/830 power adapter
Power cord set
BP290 Li-ion battery pack
TL175 test lead set
VPS421 probe (2x)
Hand strap
Hanging strap
USB-cable
CXT293 carrying case
DWA-131 WiFi dongle
FlukeView Activation instructions (paper)
Printed instructions
Product Codes
Mfr Part No :
FLUKE-190-202-III-S
